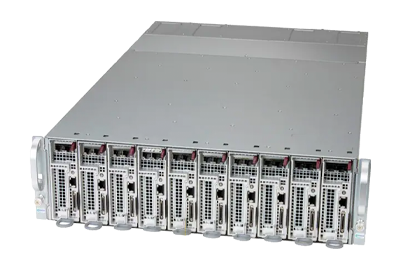

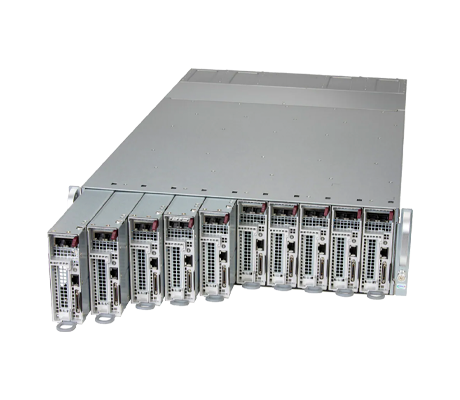

The 3U Supermicro MicroCloud A+ Server 3015MR-H10TNR has 10x nodes, each with its own motherboard and powered by a single AMD EPYC 4004 or 4005 Series processor. These CPUs deliver up to 16x cores, 32x threads, and offer a TDP ranging from 65W to 170W. Each node is equipped with up to 192 GB of ECC and Non-ECC DDR5 UDIMM memory in 4x DIMM slots with speeds of up to 5600 MT/s.
Supermicro MicroCloud A+ Server 3015MR-H10TNR - System Overview

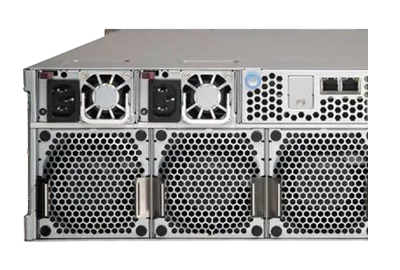

Designed for video streaming, social networking, cloud computing, and more, the Supermicro MicroCloud 3015MR-H10TNR provides a total of 40x internal fixed 2.5” drive bays, with 4x bays assigned to each node. Storage options include: 2x internal fixed 2.5” PCIe 5.0 NVMe drive bays, 2x optional internal fixed 2.5” SATA drive bays, and 1x M.2 NVMe slot for a 2280 or 22110 form factor drive. For expansion, the front of the nodes support 1x PCIe 5.0 x16 low-profile slot for a single-width GPU such as the NVIDIA PCIe L4 or A2 GPUs, as well as a PCIe 5.0 x4 MicroLP slot for network cards. In back, the Supermicro 3015MR-H10TNR chassis features 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies and 5x heavy duty, hot-swap 8cm fans.
Administrators can choose how to manage the system with an array of software utilities from Supermicro. SuperCloud Composer, Supermicro SuperDoctor 5 (SD5), and SuperServer Automation Assistant (SAA), and others provide the management tools you need. SAA combines multiple tools into a single interface to easily configure, update, and automate tasks. This software can manage a single server or an entire data center.
Supermicro MicroCloud A+ Server 3015MR-H10TNR - Specifications
