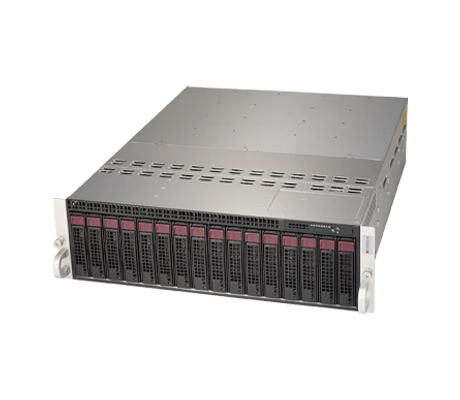

Designed to handle high-density, multi-node environments, the 3U Supermicro MicroCloud A+ Server 3015MR-H8TNR supports up to 8x nodes. Each node is powered by a single AMD EPYC 4004 or 4005 Series processor and can deliver up to 16x cores and 32x threads. The system can support CPUs with a TDP ranging from 65W to 170W for demanding workloads like video streaming, social networking, and cloud computing. This system supports 1x single width NVIDIA GPU such as the T4, L4, or A2 GPU.
Supermicro MicroCloud A+ Server 3015MR-H8TNR - System Overview

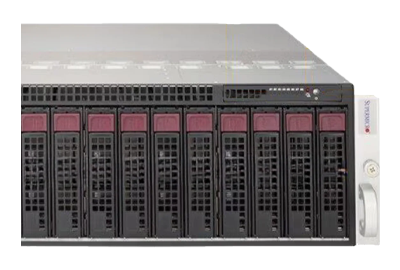

Each node on the Supermicro MicroCloud 3015MR-H8TNR can be equipped with up to 192 GB of ECC or Non-ECC DDR5 UDIMM memory, offering speeds of up to 5600 MT/s across 4x DIMM slots. A total of 16x fixed 3.5” drive bays can be found on the front panel of the chassis, with 2x bays dedicated to each node. These drives bays support 3.5” or 2.5” NVMe, SAS, and SATA configurations. SAS and SATA support may require additional storage controllers and/or cables. A single M.2 NVMe/SATA slot supporting 2280 or 22110 form factor cards can also be found on the motherboard. For expansion, each node supports 1x PCIe 5.0 x8 low-profile slot for a single-width GPU and 1x PCIe 5.0 x8 MicroLP slot for network cards. This system is cooled by 4x heavy duty 8cm fans and powered by 2x 2200W redundant (1+1) Titanium level power supplies.
To manage the Supermicro 3015MR-H8TNR, administrators can choose from a variety of management software options, including SuperCloud Composer, Supermicro SuperDoctor 5 (SD5), and the SuperServer Automation Assistant (SAA). SuperCloud Composer is a management platform that simplifies the configuration, monitoring, and automation of Supermicro server infrastructures. It enables administrators to efficiently manage large-scale deployments, optimize power usage, automate system updates, and monitor server health from a single interface, streamlining data center operations.
Supermicro MicroCloud A+ Server 3015MR-H8TNR - Specifications
Processor
1x AMD EPYC 4005 Series CPU
1x AMD EPYC 4004 Series CPU
Up to 16 cores/32 threads
Up to 65W-170W TDP CPUs (Air Cooled)
Motherboard: Super H13SRE-F
GPU
Up to 1x single-width GPU
NVIDIA PCIe: T4, L4, A2
Memory
Slot Count:
4x DIMM slots
Max Memory:
1DPC: Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
1DPC: Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM
Drive Bays
Default: Total 2 bays
2x front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays
