Supermicro MP SuperServer 241E-TNRTTP

Featuring 4x sockets outfitted with 4th Generation Intel Xeon Scalable Processors, the Supermicro MP SuperServer 241E-TNRTTP is housed in a 2U rackmountable chassis. Each socket supports 16x DDR5 DIMM slots for a total of a 64x DIMM slots on the system board. Fully configured, the maximum memory capacity is 16TB. On the front of the server, there are 24x 2.5-inch hot-swap NVMe/SAS3/SATA3 drive bays. To expand the capabilities of the Supermicro MP 241E-TNRTTP, there are a total of 4x PCIe 5.0 x16 slots, 2x PCIe 5.0 x8 slots, and 2x PCIe 5.0 AIOM/OCP 3.0 networking slots on the rear.
Configure

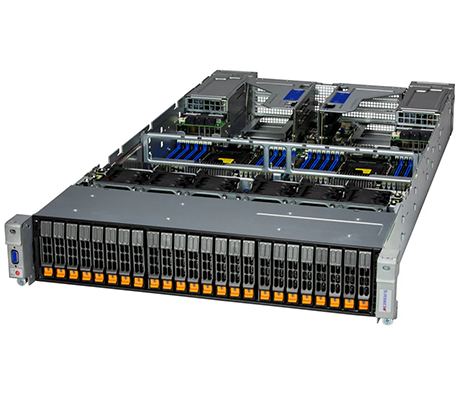

Supermicro 241E-TNRTTP side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro MP SuperServer 241E-TNRTTP - System Overview

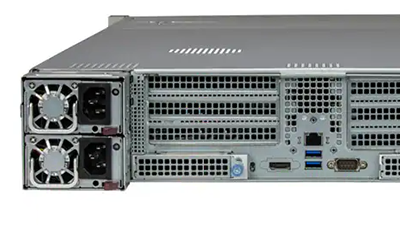

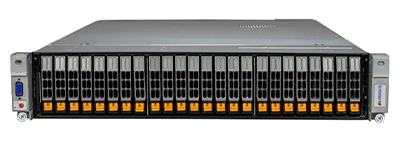

Supermicro SuperServer 241E-TNRTTP front detail Supermicro SuperServer 241E-TNRTTP detail top

Additional Features

Supermicro’s line of MP servers deliver the highest single note compute performance offering maximum configurability and scalability. Offering superb performance, the Supermicro 241E-TNRTTP server is designed for Artificial Intelligence, ERP, CRM, In-Memory Database tasks, Business Intelligence, Scientific Virtualization, HCI, and SAP HANA. It is powered by 4x 1600W Titanium Level power supplies in a redundant configuration. 2x internal NVMe or SATA M.2 drives are supported, and installing a storage add-on card will provide optional RAID support.

NOTE: This system is only sold as a complete system with at least 4 CPUs, 4 DIMMs, 1 storage device (HDD/SSD/NVMe/M.2) and 1 network interface controller (NIC) or Advanced I/O Module (AIOM) card.

Supermicro MP SuperServer 241E-TNRTTP - Specifications

Processor - 4 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • +3 UPI up to 16GT/s

    • Socket:

  • 4 x LGA-4677

Motherboard

  • Super X13QEH+

Memory

    Memory Slots:

  • 128 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 32TB: 128x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Hot-Swap:

  • 24 x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24 x 2.5" NVMe hybrid) (Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)

    • M.2:

  • 2 x M.2 NVMe or 2 x M.2 SATA3
  • Form Factor: 2280/22110

Expansion Slots

  • 2 x PCIe 5.0 x8 FHFL slots
  • 2 x PCIe 5.0 x16 FHFL slots
  • 2 x PCIe 5.0 x16 FHHL slots
  • 1 x PCIe 5.0 x16 AIOM slot / OCP 3.0
  • 1 x PCIe 5.0 x8 AIOM slot / OCP 3.0

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE BaseT

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 1 x 1GbE RJ45

    • USB:

  • 2 x USB 1.1 ports (2 front)
  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA ports
  • 1 x DisplayPort

Chassis

    Enclosure:

    Height: 10.4" (265mm)

    Width: 17.68" (449mm)

    Depth: 33.1" (841mm)

Supermicro MP SuperServer 241E-TNRTTP - Documentation

Supermicro MP SuperServer 241E-TNRTTP Data Sheet
