Supermicro MP SuperServer 241H-TNRTTP

The Supermicro MP SuperServer 241H-TNRTTP is a quad socket system compatible with 4th Generation Intel Xeon Scalable processors. Each socket supports 16x DDR5 DIMM slots for a total of 64x DIMM slots. Fully configured, the maximum memory capacity on this system is 16TB. Main storage on the front of the system includes 8x 2.5-inch NVMe/SAS3/SATA3 drive bays. Expanding the capabilities of the Supermicro MP 241H-TNRTTP are 12x PCIe Slots with optional Advanced I/O Module (AIOM) slots compatible with OCP 3.0 NICs.
Configure

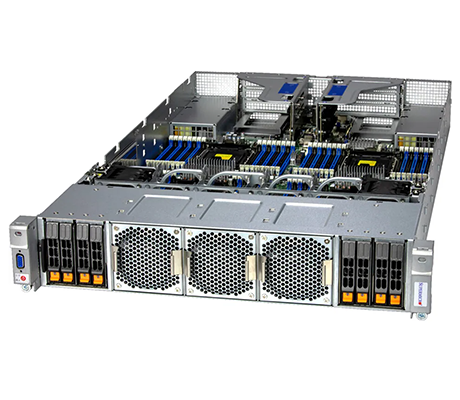

Supermicro 241H-TNRTTP side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro MP SuperServer 241H-TNRTTP - System Overview

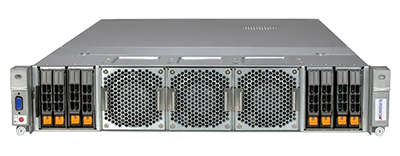

Supermicro SuperServer 241H-TNRTTP front detail Supermicro SuperServer 241H-TNRTTP detail top

Additional Features

With 2x PCIe 5.0 x8 FHFL slots, 2x PCIe 5.0 x16 FHFL slots, and 2x PCIe x16 FHHL slots, plus optional x8 and x16 slots this system can also support 2x double-wide GPU or accelerator cards for high-performance computing. Designed for Artificial Intelligence applications, Business Intelligence, Scientific Virtualization, and HCI the Supermicro 241H-TNRTTP is 2U rack-mountable system. 2x slots on the system board can be outfitted with optional M.2 NVMe or SATA3 drives. This system is powered by 2x 2700W Titanium power supplies in a redundant configuration.

NOTE: This system is only sold as a complete system with at least 4 CPUs, 4 DIMMs, and 1 storage device (HDD/SSD/NVMe not including an M.2).

Supermicro MP SuperServer 241H-TNRTTP - Specifications

Processor - 4 Sockets

  • 4th Generation Intel Xeon Scalable Processor with 3 UPI up to 16GT/s

    • Socket:

  • 4 x LGA-4677 E socket

Motherboard

  • Super X13QEH+

Memory

    Memory Slots:

  • 64 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 16TB: 64x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Hot-Swap:

  • 8 x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (Default 8x SATA3 drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list.)

    • M.2:

  • 2 x M.2 NVMe OR 2 x M.2 SATA3

Expansion Slots

  • 2 x PCIe 5.0 x8 Full-Height, Full-Length slots (x16 FL optional)
  • 2 x PCIe 5.0 x16 Full-Height, Full-Length slots
  • 2 x PCIe 5.0 x16 Full-Height, Half-Length slots
  • 1 x PCIe 5.0 x16 AIOM slot
  • 1 x PCIe 5.0 x8 AIOM slot

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2 x USB 2.0 ports (2 front)
  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA port
  • 1 x DisplayPort

    • Serial Port:

  • 2 x COM Ports (1 header; 1 rear)

Chassis

    Enclosure:

    Height: 3.5" (89mm)

    Width: 17.3" (438.4mm)

    Depth: 32" (812.9mm)

Supermicro MP SuperServer 241H-TNRTTP - Documentation

Supermicro MP SuperServer 241H-TNRTTP Data Sheet
