Supermicro MP SuperServer 681E-TR

On the front of the server, there are 24x 2.5-inch hot-swappable NVMe/SAS3/SATA3 drive bays. The 6U Supermicro MP SuperServer 681E-TR has 8x LGA 4677 CPU sockets for high-performance computing applications and supports up to 12x GPUs. Each of the 4th Generation Intel Xeon Scalable Processors support 16x DDR5 DIMM slots for 128x total slots and a maximum memory capacity of up to 32TB. System expansion on the Supermicro 681E-TR is achieved through 12x PCIe 5.0 x16 full-height, full-length slots, and 12x PCIe x16 full-height, full-length optional slots, and 2x PCIe 5.0 x16 low-profile internal optional slots.
Configure

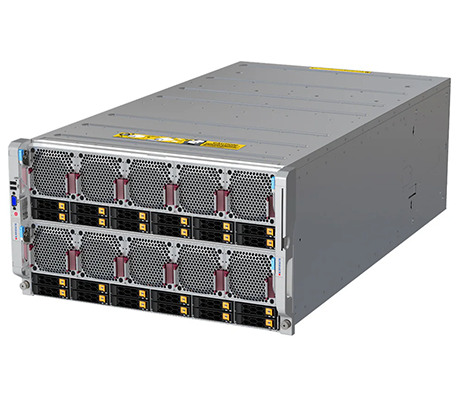

Supermicro 681E-TR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro MP SuperServer 681E-TR - System Overview

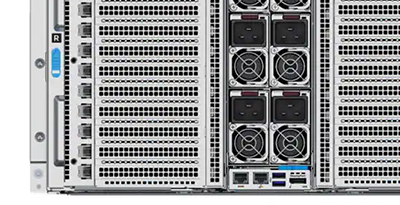

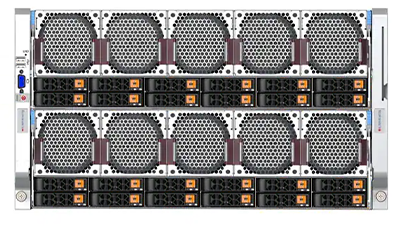

Supermicro SuperServer 681E-TR front detail Supermicro SuperServer 681E-TR detail top

Additional Features

Build in a 6U chassis, the Supermicro MP 681E-TR is designed for Virtualization, Scale-up HPC, In-Memory Database applications, and Research Lab/National Lab tasks. NVMe SSD support requires a virtual RAID on CPU key providing RAID of 0, 1, 5, or 10. 2x internal SATA/NVMe M.2 drives are also supported internally. The system can be outfitted with up to 12x double-width GPU/Accelerator cards. It is powered by 6x 2600W Titanium Level power supplies in a redundant configuration.

NOTE: This system is only sold as a complete system with at least 8 CPUs, 64 DIMMs, and 1 storage device (HDD/SSD/NVMe/M.2).

Supermicro MP SuperServer 681E-TR - Specifications

Processor - 8 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • +4 UPI up to 16GT/s

    • Socket:

  • 8 x LGA-4677

Motherboard

  • Super X13OEI-CPU

Memory

    Memory Slots:

  • 128 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 32TB: 128x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Hot-Swap:

  • 24 x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24 x 2.5" NVMe hybrid) (Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)

    • M.2:

  • 2 x M.2 NVMe or 2 x M.2 SATA3
  • Form Factor: 2280/22110

Expansion Slots

  • 12 x PCIe 5.0 x16 FHFL slots
  • 12 x PCIe 5.0 x16 FHFL optional slots
  • 2 x PCIe 5.0 x16 LP internal optional slots

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE BaseT

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 1 x 1GbE RJ45

    • USB:

  • 2 x USB 1.1 ports (2 front)
  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA ports
  • 1 x DisplayPort

Chassis

    Enclosure:

    Height: 10.4" (265mm)

    Width: 17.68" (449mm)

    Depth: 33.1" (841mm)

Supermicro MP SuperServer 681E-TR - Documentation

Supermicro MP SuperServer 681E-TR Data Sheet
