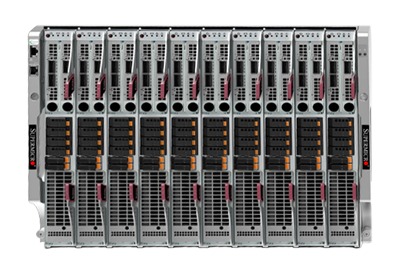

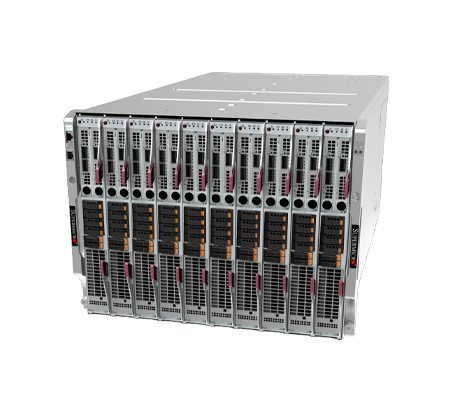

Additional InformationDesigned for Supermicro's 8U SuperBlade enclosure, it supports up to 10x single-socket compute SBA-817V7-1N nodes per chassis. Each blade is equipped with 1x AMD EPYC 9006 Series SP7 processor with a maximum TDP of up to 600W. Each server node provides 16x DDR5 DIMM slots supporting either RDIMM or Multiplexed Rank DIMM (MRDIMM) memory technologies. At full capacity it can support up to 4TB of memory , per node. RDIMMs operate at speeds of up to 8000MT/s, whereas MRDIMMs can reach memory speeds of up to 12800MT/s.
Storage configurations can be tailored to different deployment needs with support for 4x hot-swappable E1.S NVMe SSDs, 4x hot-swappable E3.S NVMe SSDs, 2x hot-swappable U.2 NVMe SSDs, or 6x hot-swappable M.2 NVMe SSDs, per node. Additionally, 2x internal M.2 NVMe drives are available for boot storage and support optional RAID. For expansion, the Supermicro 817V7-1N includes up to 4x PCIe Gen6 x16 slots with configurations supporting up to 1x double-width GPU or 2x single-width GPUs. The platform also features integrated dual-port 25GbE networking, along with the ASPEED AST2700 BMC, Hardware Root of Trust, TPM 2.0, and Redfish API for secure remote management. To accommodate a variety of data center environments, the SBA-817V7-1N is available in both air-cooled and liquid-cooled configurations.
Explore available configurations for the Supermicro SBA-817V7-1N SuperBlade. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- Single Socket SP7
- AMD EPYC 9006 SP7 Series Processor
- Up to 256 cores/ 512 threads
- Supports up to 600W TDP CPUs (Air Cooled/Liquid Cooled)
- System on Chip
- MBD-BH15SPS-25G
- 16x DIMM slots
- Max Memory (1DPC): Up to 4TB 8000 MT/s ECC DDR5 RDIMM/3DS RDIMM
- Max Memory (1DPC): Up to 4TB 12,800 MT/s ECC DDR5 MRDIMM
- Option A: 4 Hot-swap E1.S NVMe SSDs
- Option B: 4 Hot-swap E3.S NVMe SSDs
- Option C: 2 Hot-swap U.2 NVMe SSDs
- Option D: 6 Hot-swap M.2 NVMe SSDs
May require additional storage controller and/or cables for each of the form factors
Max GPU Count
- Up to 1x double-width or 2x single-width GPUs
PCIe Configurations
Up to 4 PCIe Gen6 x16:
- 1x FHFL (Dual slot)* GPU + 2x Std low profile AOC
- 2x FHFL (Single slot) GPU + 2x Std low profile AOC
*May require additional parts and cables
Network Controllers
- Onboard Dual 25G Ethernet
Management/Security
- IPMI 2.0
- KVM over IP
- Redfish API
- IPMI 2.0
- TPM 2.0
- Signed Firmware
- HW Root of Trust
Graphics
- Aspeed AST2700 BMC
BIOS Type
- 256Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- BIOS Feature: ACPI 6.4
- Plug and Play (PnP)
- SMBIOS 3.5 or later
- UEFI 2.8
- USB Keyboard support
Height
- 13" (330.2mm)
Width
- 1.75" (44.45mm)
Depth
- 23.5" (596.9mm)
Weight
- 24.2 lbs (11.0 kg)
