Supermicro Storage A+ Server 1014S-ACR12N4H

The Supermicro Storage A+ Server 1014S-ACR12N4H is a high-density, top-loading 1U system powered by a single AMD EPYC 7002 or 7003* series processor with up to 64 cores and 128 threads. After lifting the lid, the chassis supports 12x 3.5” SAS/SATA hot-swap storage bays in toolless drive carriers that attach to 3x small backplanes. Each backplane supports 4x 3.5” HDDs. On the front panel, there are 4x additional 2.5” 7mm NVMe drive bays, plus 2x M.2 NVMe PCIe 4.0 x2 slots on the motherboard for 2280 or 22110 cards. The 22110 form factor is recommended because the appropriate standoff comes pre-installed on the motherboard.

Overview

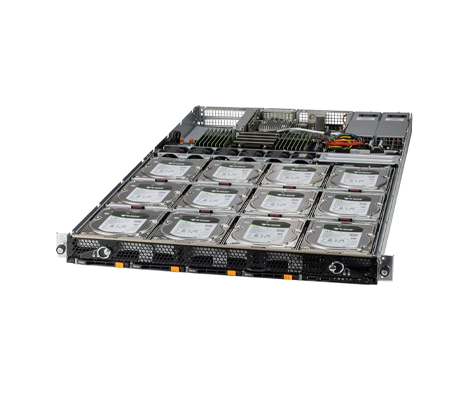

Supermicro Storage A+ Server 1014S-ACR12N4H - System Overview

Supermicro Storage A+ Server 1014S-ACR12N4H front of system

Ideal for database applications, big data analytics, Hadoop & Ceph storage solutions, and more, the Supermicro Storage 1014S-ACR12N4H has a lot to offer in a small 1U chassis. The platform supports up to 4TB of ECC DDR4 memory modules in 16x slots with a top speed of 3200 MHz. RDIMM, LRDIMM or 3DS RDIMM or LRDIMM memory modules are compatible with this platform. 2x PCIe 4.0 x16 full-height, half-length slots in a riser card bracket and 1x PCIe 4.0 x16 low-profile expansion slot can be used for expansion options. To manage the system, there is a single dedicated RJ45 IPMI LAN port on the rear. Several software programs available from Supermicro can manage the system including SuperDoctor 5 which functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors system health information like CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

*NOTE: The AMD EPYC 7003 CPU requires BIOS version 2.0 or newer Supermicro Storage A+ Server 1014S-ACR12N4H rear of system

Specifications

Supermicro Storage A+ Server 1014S-ACR12N4H - Specifications

Processor - 1 Socket

Single Socket SP3
AMD EPYC™ 7003/7002 Series Processor
Supports 120W - 240W TDP CPUs (Air Cooled)

Memory

Up to 4TB: 16x 256 GB DRAM

Memory Slots:

16 x DIMM slots

Memory Type:

3200MHz ECC DDR4 RDIMM/LRDIMM

Drive Bays

Hot-swap:

12x 3.5" hot-swap SATA3/SAS3 drive bays
4x 2.5" 7mm drive bays

M.2:

2x M.2 NVMe
M-Key, 22110

On-Board Devices

Chipset:

System on Chip

Network Connectivity:

2x 10GbE BaseT with Broadcom

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

LAN:

2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port

USB:

2x USB 2.0 port(s) (2x Front_USB)
4x USB 3.0 port(s) (4x Rear_USB)

VGA:

1x VGA port(s)

Serial Port:

1x Serial

System BIOS

AMI 256MB SPI Flash EEPROM

Management

IPMI 2.0
KVM with dedicated LAN
Super Diagnostics Offline
SuperDoctor® 5
Supermicro Update Manager (SUM)
Supermicro Server Manager (SSM)
Redfish API

Front Panel

Power On/Off button

LEDs:

HDD activity LED
Network activity LEDs
Power status LED
System Information LED

Expansion Slots

1x PCI-E 4.0 x16 LP slot
2x PCI-E 4.0 x16 FP slot

Power Supply

800W Redundant Platinum Level power supplies

Chassis

1U Rackmount

Dimensions (D x W x H)

37" x 17.6" x 1.7"

Weight

Gross Weight: 58 lbs (26.3 kg)
Net Weight: 39.5 lbs (17.9 kg)

Documentation

Supermicro Storage A+ Server 1014S-ACR12N4H - Documentation

Supermicro Storage A+ Server 1014S-ACR12N4H Data Sheet Supermicro Storage A+ Server 1014S-ACR12N4H User Manual
