Supermicro Storage A+ Server 1115S-NE316R

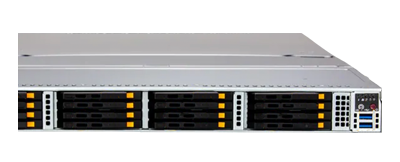

Not only does the Supermicro Storage 1115S-NE316R offer external drive bays, the system also supports 1x M.2 PCIe 3.0 x2 NVMe slot and 1x M.2 PCIe 3.0 x4 NVMe slot, both of which are compatible with 2280 and 22110 cards. When all 24x memory module slots are filled with 384GB 3DS RDIMM/RDIMM DDR5 ECC memory, total memory capacity can reach up to 9TB, depending on the CPU installed. The following configurations are available:

• Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
• Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
• Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
• Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)

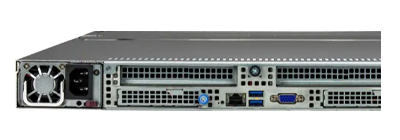

By default, the Supermicro 1115S-NE316R features 2x PCIe 5.0 x16 FHHL slots and 2x PCIe 5.0 x16 OCP 3.0 AIOM slots that are accessible through the rear panel. Administrators can utilize SuperCloud Composer, SuperDoctor 5, Super Diagnostics Offline, and other software tools from Supermicro to manage the Supermicro Storage A+ 1115S-NE3X12R. The purpose of Supermicro SuperDoctor 5 (SD5) is to track and enhance Supermicro server performance. It provides users with real-time hardware and OS health tracking, alerting them to any problems and system status. Both web-based and command-line interfaces are available for SD5.
