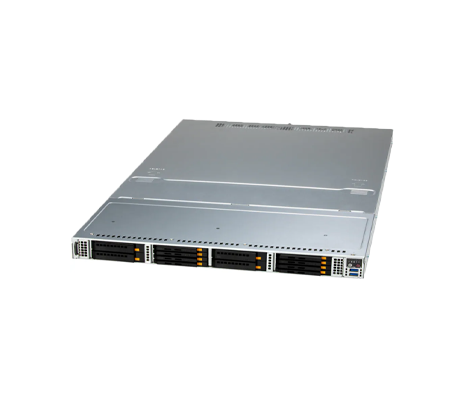

Supermicro Storage A+ Server 1115S-NE3X12R

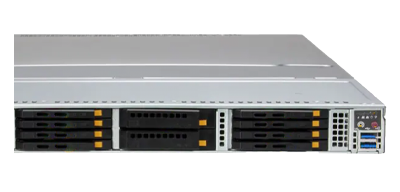

The E3.S 2T are designed to take advantage of the improved communications between CPU and memory via a CXL 2.0 compatible interface. E3.S 2T provides a cost-effective memory expansion solution and enables memory pooling for efficient resource sharing across servers. In addition to the front panel drive bays, the H13 motherboard holds 1x M.2 PCIe 3.0 x2 NVMe slot and 1x M.2 PCIe 3.0 x4 NVMe slot, both compatible with 2280 and 22110 form factor cards. The Supermicro 1115S-NE3X12R can be outfitted with 1x AMD EPYC 9004 or 9005 series processor offering up to 96 cores and 192 threads, and a TDP of up to 300W. Designed for data-intensive high-performance computing (HPC), NVMe over Fabrics (NVMe-oF) solutions, and more. The server supports a broad range of memory configurations based on the installed CPU series. It provides up to 24 DIMM slots across 2x sockets, each offering 12-channel memory architecture.

• Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
• Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
• Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
• Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)

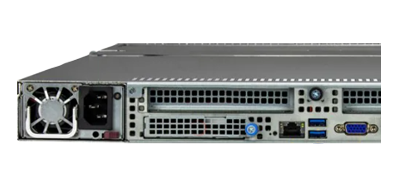

The rear of the chassis supports 2x PCIe 5.0 x16 FHHL slots and 2x PCIe 5.0 x16 OCP 3.0 AIOM slots. The server also supports up to 4x CXL 2.0 x8 Type 3 devices. To manage the Supermicro Storage A+ 1115S-NE3X12R, administrators can use Supermicro’s suite of software tools such as SuperCloud Composer, Supermicro SuperDoctor 5, Super Diagnostics Offline, and more. Supermicro SuperDoctor 5 (SD5) is designed to monitor and optimize the performance of Supermicro servers. It offers real-time tracking of hardware and OS health, sending alerts to administrators regarding system status and potential issues. SD5 is accessible through both web-based and command-line interfaces, providing flexibility for different management preferences.
