Supermicro Storage A+ Server 2015S-E1CR24H

The 2U Supermicro Storage A+ Server 2015S-E1CR24H features a unique design with 2x 12-bay storage cages in front for a total of 24x 3.5" hot-swap SATA3/SAS3 drive bays. The server supports a single AMD EPYC 9004 series CPU, including the 4th generation AMD EPYC with 3D V-Cache technology. It supports a TDP up to 200W-290W. The system comes with 4x heavy duty 8cm fans and is equipped with dual redundant 1600W Titanium level (96%) power supplies. This platform is ideal for iSCSI SAN, high performance computing, database processing and storage.
Configure

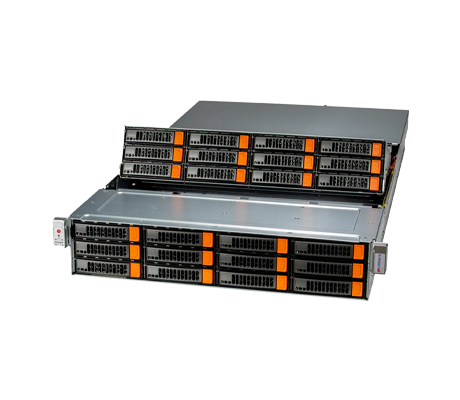

Supermicro Storage A+ Server 2015S-E1CR24H side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Storage A+ Server 2015S-E1CR24H - System Overview

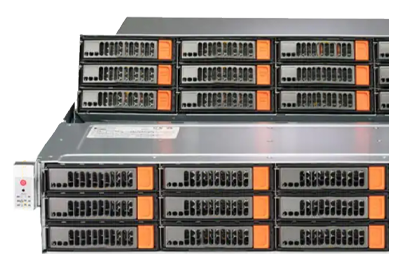

Supermicro 2015S-E1CR24H front of system

When all 12x memory module slots are loaded with 256GB RDIMMs or LRDIMMs, the Supermicro 2015S-E1CR24H offers up to 3TB of RAM with speeds of up to 4800 MHz. There are 12x 3.5" hot-swap SATA3/SAS3 drive bays on the front of the chassis, plus an additional 12x drive bays located right behind those, for a total of 24x LFF drive bays. The dense and flexible system also houses 2x 2.5" hot-swappable SATA3 drives on the rear, and 2x SATA3 or NVMe M.2 slots under the hood for 2280 and 22110 cards. As an option, the system can also be outfitted with 4x rear NVMe drive bays. To administer the system both locally and remotely, the system is compatible with Redfish API and IPMI 2.0, plus Supermicro Update Manager (SUM), SuperDoctor 5, Super Diagnostics Offline.

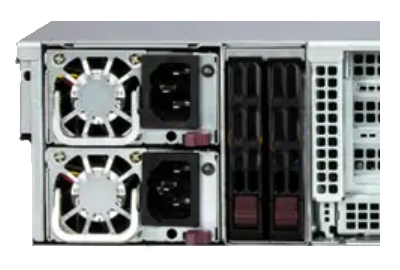

Supermicro 2015S-E1CR24H rear of system

Supermicro Storage A+ Server 2015S-E1CR24H - Specifications

Processor - 1 Socket

  • Single AMD EPYC™ 9004 Series Processor with AMD 3D V-Cache™ Technology
  • Socket SP5
  • Supports 200W - 290W TDP CPUs (Air Cooled)

Memory

    Maximum Memory:

  • Up to 3TB: 12x 256 GB DRAM

    • Memory Slots:

  • 12 x DIMM slots

    • Memory Type:

  • 4800MHz ECC DDR5 RDIMM;LRDIMM

Drive Bays

    Hot-swap:

  • 24x 3.5" hot-swap SATA3/SAS3 drive bays

    • M.2:

  • 2x M.2 NVMe
  • 2280 and 22110

On-Board Devices

    Chipset:

  • System on Chip

    • Network Controllers:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

    LAN:

  • 1x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2x USB 3.0 ports (rear)

    • COM:

  • 1x COM Port (rear)

    • Video:

  • 1x VGA Port

System BIOS

  • AMI 32MB SPI Flash EEPROM

Management

  • Super Diagnostics Offline
  • IPMI 2.0, KVM with dedicated LAN
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • SuperDoctor® 5
  • Redfish API

Front Panel

    Buttons:

  • Power On/Off button

    • LEDs:

  • SSD activity LED
  • Network activity LEDs
  • Power status LED
  • System Information LED

Expansion Slots

    Option 1

  • PCIe 5.0 x16
  • PCIe 5.0 x8
  • PCIe 5.0 x16
  • PCIe 5.0 x16
  • PCIe 5.0 x16
  • PCIe 5.0 x16

    • Option 2

  • PCIe 5.0 x16
  • PCIe 5.0 x8
  • PCIe 5.0 x16
  • Rear NVMe N1
  • Rear NVMe N0
  • PCIe 5.0 x16

    • Option 3

  • Rear NVMe N3
  • Rear NVMe N2
  • PCIe 5.0 x16
  • Rear NVMe N1
  • Rear NVMe N0
  • PCIe 5.0 x16

Power Supply

  • 1600W Redundant Titanium Level power supplies

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 34" x 17.2" (437mm) x 3.5" (89mm)

    • Weight

  • Gross Weight: 74.5 lbs (33.79 kg)
  • Net Weight: 52 lbs (23.59 kg)

Supermicro Storage A+ Server 2015S-E1CR24H - Documentation

Supermicro Storage A+ Server 2015S-E1CR24H Datasheet
