Supermicro Storage A+ Server 2015S-E1CR24L

With a unique front loading storage configuration that supports up to 24x 3.5-inch storage bays, the 2U Supermicro Storage A+ Server 2015S-E1CR24L features a single 4th generation AMD EPYC CPU. The thermal design power range on the CPU is listed at up to 290W for air cooled configurations. At full capacity it can support up to 3TB of DDR5 registered (RDIMM) or load-reduced (LRDIMM) memory modules.
Configure

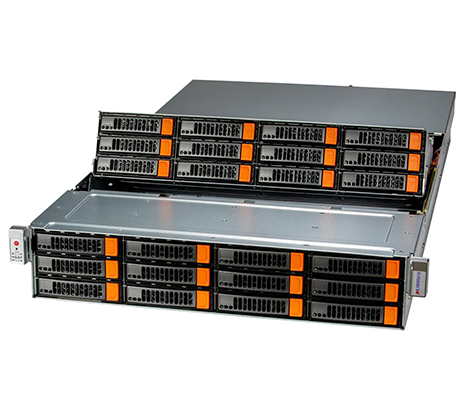

Supermicro 2015S-E1CR24L side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Storage A+ Server 2015S-E1CR24L - System Overview

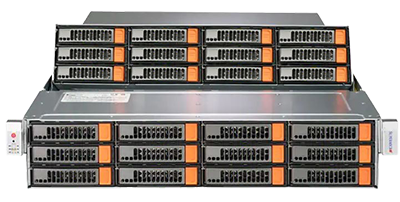

Supermicro SuperServer 2015S-E1CR24L front detail Supermicro 2015S-E1CR24L detail top

Additional Features

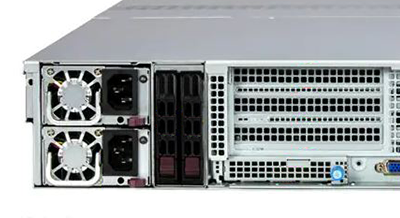

In addition to the 2x front loading drive cages, each supporting 12x 3.5-inch SAS3, SATA3 drive formats, the system also has 2x rear SAS drive slots plus the option to install 4x rear NVMe drive bays instead of PCIe slots. The Supermicro Storage A+ Server 2015S-E1CR24L has up to 6x PCIe 5.0 slots with a Broadcom 3808 HBA controller in slot #2 and two dedicated PCIe 5.0 x16 advanced I/O module (AIOM) slots compliant with OCP 3.0 SFF standards. Two slots on the system board support 2x NVMe M.2 drives that can be used to boot the system in a mirrored RAID.

Management of the Supermicro 2015S-E1CR24L is either through third-party options compatible with the integrated platform management interface 2.0 (IPMI 2.0) or through a suite of Supermicro software. Supermicro’s management tools include SuperDoctor 5.0 (SD5), The Supermicro Update Manager (SUM), and the Supermicro Server Manager (SSM), to name a few. A dedicated RJ45 port on the back of the system provides access to the integrated baseboard management controller (BMC). Power is provided by dual redundant 1600W Titanium-level PSUs.

Supermicro Storage A+ Server 2015S-E1CR24L - Specifications

Processor - 1 Socket

  • AMD EPYC 9004 Series Processor

    • Socket:

  • SP5 / LGA 6096

Motherboard

  • Super H13SSW

Memory

    Memory Capacity:

  • Up to 3TB: 12x 256 GB DRAM

    • Memory Type:

  • 4800MHz ECC DDR5 RDIMM;LRDIMM

Drive Bays

    Drive Bays:

  • 24 x 3.5" hot-swap SATA3/SAS3 drive bays

    • M.2:

  • 2 x M.2 NVMe
  • M-Key, 2280 and 22110

Expansion Slots

    PCIe:

  • 4 x PCIe 5.0 x16 FH slots
  • 2 x PCIe 5.0 x8 FH slots
  • 2 x PCIe 5.0 x16 AIOM slots (OCP 3.0 Compatible)

On-Board Devices

    Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2 x USB 3.0 ports (2 Rear USB)

    • Video:

  • 1 x VGA port

    • Serial Port:

  • 1 x COM Port (1 rear)

Management

  • IPMI 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor 5
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • Redfish API

System Cooling

    Fans:

  • 4 x Heavy Duty 8cm Fans

Power Supply

  • 2 x 1600W Redundant Titanium Level power supplies

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 17.2" (436.9mm)

    Depth: 34" (863.6mm)

Supermicro Storage A+ Server 2015S-E1CR24L - Documentation

Supermicro Storage A+ Server 2015S-E1CR24L Data Sheet
