Supermicro Storage A+ Server 2115S-NE332R

At 2U, the Supermicro Storage A+ Server 2115S-NE332R offers up to 32x E3.S NVMe drives. This is an all-flash front-loading storage server with a single AMD EPYC 9004 or 9005 series CPU. Processors with a TDP of up to 400W are supported. It can also deliver up to 9TB of Registered memory in 24x DDR5 DIMM slots when using 9005-series AMD EPYC CPUs.
Configure

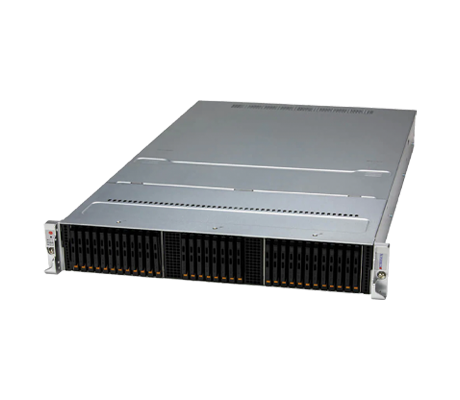

Supermicro Storage A+ Server 2115S-NE332R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Storage A+ Server 2115S-NE332R - System Overview

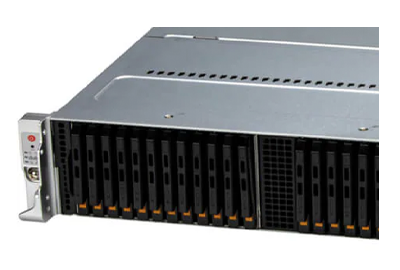

Supermicro 2115S-NE332R front of system

The Supermicro Storage A+ Server 2115S-NE332R is used for software-defined storage, in-memory computing, data-intensive high-performance computing plus NVMe over fabrics solution and as a private or hybrid cloud appliance. Memory capacity is dependent on the CPU generation and memory configuration. 9004-series processors. Maximum memory supported with 9004-series CPUs is up to 6TB. In order to preserve up-front storage and boot the system, the motherboard features dual PCIe 5.0 x4 slots for support of M.2 drives. There are also 2x rear hot-swap 2.5-inch SATA drive bays.

Supermicro 2115S-NE332R rear of system

For managing the system remotely, Supermicro has provided a number of server software utilities. Supermicro SuperCloud Composer provides comprehensive management of the infrastructure, including 3rd-party appliances. SuperDoctor 5 or SD5 is also designed to manage the system and provides an easy-to-use browser-based interface.

Supermicro Storage A+ Server 2115S-NE332R - Specifications

Processor - 1 Socket

  • Single AMD EPYC 9004/9005 Series Processor
  • AMD EPYC 9005 Series drop-in support requires board revision 2.x
  • Supports up to 360W TDP

Memory

    Maximum Memory:

  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)

    • Memory Slots:

  • 24 x DIMM slots

    • Memory Type:

  • ECC DDR5 RDIMM

Drive Bays

    Default: Total 34 bays

  • 2x rear hot-swap 2.5" SATA drive bays
  • 32x front hot-swap E3.S 1T PCIe 5.0 x2 NVMe drive bays

    • M.2:

  • 1x M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
  • 1x M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)

On-board Devices

    Chipset:

  • System on Chip

    • Network Controllers:

  • Via AIOM

Input/Output

    LAN:

  • 1x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2x USB 3.0 ports (rear)
  • 2x USB 3.0 ports (front)

    • Video:

  • 1x VGA Port

System BIOS

  • AMI 32MB SPI Flash EEPROM

Management

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

Expansion Slots

  • 2x PCIe 5.0 x16 FHHL slots
  • 2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

  • 2x M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)

Power Supply

  • 1x 2000W Redundant Titanium Level (96%) power supply

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 438.4 x 89.8 x 789.9mm (17.2" x 3.5" x 30.8")

    • Weight

  • Gross Weight: 77 lbs (34.93 kg)
  • Net Weight: 55 lbs (24.95 kg)
