Supermicro Storage SuperServer 121E-NES24R

The dual-socket Supermicro Storage SuperServer 121E-NES24R server supports up to 8TB of DDR5 memory, 24x E1.S SSDs and 9.5mm or 15mm drive slots, and 4th or 5th generation Intel Xeon Scalable processors, all in a 1U form factor. With 24x hot-swappable NVMe storage bays, 2x OCP slots, and PCIe 5.0 x16 expansion slots, the server is made for hyperscalers and other users who need enormous scale and density. The server also has two redundant 2000W power supplies.
Configure

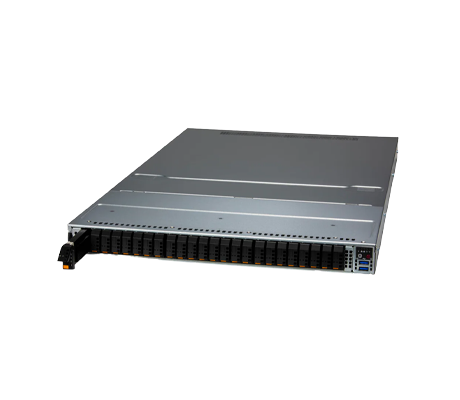

Supermicro Storage SuperServer 121E-NES24R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Storage SuperServer 121E-NES24R - System Overview

Supermicro Storage SuperServer 121E-NES24R front of system Supermicro Storage SuperServer 121E-NES24R rear of system

Designed for software-defined storage, in-memory computing, private and hybrid cloud, and NVMe over Fabrics solution, the Supermicro 121E-NES24R server has a lot to offer. When all 32x DIMM slots are filled with 256GB DDR5 memory modules, the system offers up to 8TB of RAM with maximum memory speeds of up to 5600MHz. Aside from the drive bays on the front panel, the system supports 2x PCIe 3.0 NVMe or SATA3 M.2 slots under the hood for 2280 and 22110 cards. Additionally, this machine has a variety of I/O ports for connectivity and management, including 2x OCP PCIe 5.0 x16 slots for NICs, 2x PCIe 5.0 x16 slots and a single RJ45 port. The dedicated IPMI LAN port enables remote server management and monitoring. The server also has a single serial COM port on the rear of the chassis that enables easy interface with other systems.

Supermicro Storage SuperServer 121E-NES24R - Specifications

Processor - 2 Sockets

  • Dual Socket E (LGA-4677)
  • 5th Gen Intel Xeon Scalable processors
  • 4th Gen Intel Xeon Scalable processors
  • Supports 145W - 270W TDP CPUs (Air Cooled)

Memory

    Maximum Memory:

  • Up to 8TB: 32x 256 GB DRAM

    • Memory Slots:

  • 32 x DIMM slots

    • Memory Type:

  • 5600MHz ECC DDR5 RDIMM;LRDIMM

Drive Bays

    Hot-swap:

  • 24x E1.S Hot-swap NVMe (9.5mm or 15mm) drive slots

    • M.2:

  • 2x PCIe 3.0 (Hybrid NVMe or SATA3)
  • M-Key, 2280 and 22110

Expansion Slots

  • 2x PCIe 5.0 x16 FH slot(s)
  • 2x PCIe 5.0 x16 AIOM slot(s)

Power Supply

  • 2000W Redundant Titanium Level power supplies

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

    LAN:

  • 1x RJ45 Dedicated IPMI LAN port

    • USB:

  • 4x USB 3.0 ports (2 front; 2 rear)

    • Video:

  • 1x VGA port

System BIOS

  • AMI 32MB SPI Flash EEPROM

Management

  • IPMI 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor® 5
  • Supermicro Update Manager (SUM)
  • Supermicro Power Manager (SPM)
  • Supermicro Server Manager (SSM)
  • Redfish API

Front Panel

    Buttons:

  • Power On/Off button

    • LEDs:

  • Power status LED
  • SSD activity
  • Network activity LEDs
  • System Information LED

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 30.4" (773.25mm) x 17.2" (437mm) x 1.7" (43.6mm)

    • Weight

  • Gross Weight: 68.74 lbs (31.2 kg)
  • Net Weight: 48 lbs (21.8 kg)

Supermicro Storage SuperServer 121E-NES24R - Documentation

Supermicro Storage SuperServer 121E-NES24R Specs Sheet Supermicro Storage SuperServer 121E-NES24R User Manual
