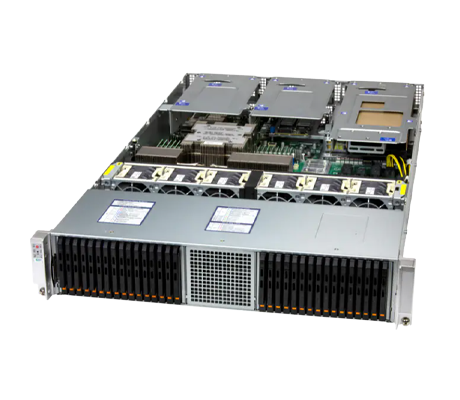

The Supermicro 2117S7-NE332R features 1x AMD EPYC 9006 Series SP7 processor with up to 256 cores and 512 threads. With air cooling, processors with a TDP of up to 600W can be installed. Memory is provided by 16x DIMM slots supporting up to 4TB of ECC DDR5 RDIMM/3DS RDIMM memory at speeds of up to 8000MT/s or up to 4TB of DDR5 MRDIMM memory at speeds of up to 12800MT/s. Front storage is available with up to 32x hot-swappable E3.S or 16x E3.L NVMe SSDs using PCIe 6.0 connectivity. Two additional M.2 PCIe 4.0 x4 NVMe slots support M-key 2280 and 22110 drives for internal storage or to boot the operating system. The system also features an onboard Broadcom 3808 controller with 12Gb/s SAS connectivity and RAID 0/1 support.
Expansion on the 2117S7-NE332R is provided by PCIe 6.0 x16 slots with several configuration options. The default configuration includes 2x PCIe 6.0 x16 FHHL double-width slots and 1x PCIe 6.0 x16 AIOM slot compatible with OCP 3.0. Depending on the configuration, the system can also support: a full-height, full-length double-width PCIe 6.0 expansion slot and up to 1x double-width GPU. System management is handled through IPMI 2.0 with KVM-over-LAN and a dedicated 1GbE BMC management port. Cooling is provided by 6x counter-rotating 60mm fans, while 2x redundant 2700W Titanium-level power supplies provide power to the system.
Explore available configurations for the Supermicro Storage SuperServer 2117S7-NE332R. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- Single AMD EPYC 9006 SP7 Series Processors
- Up to 256C/512T
- Supports up to 600W TDP CPUs (Air Cooled)
- Motherboard: Super H15SPF
- 1 double-width GPU
- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM
- Max Memory (1DPC): Up to 4TB 12800MT/s ECC DDR5 MRDIMM

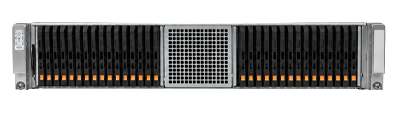

Option A: Total 32x bays
- 32x front hot-swap E3.S 1T PCIe 6.0 x2 NVMe drive bays
Option B: Total 16x bays
- 16x front hot-swap E3.L 1T PCIe 6.0 x4 NVMe drive bays
M.2:
- 2x M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
Option A
- 2x PCIe 6.0 x16 (in x16) FHFL slots
Option B
- 1x PCIe 6.0 x16 (in x16) FHFL double-width slot
- 1x PCIe 6.0 x16 (in x16) AIOM double-width slot (OCP 3.0 compatible)
Default
- 1x PCIe 6.0 x16 (in x16) FHHL double-width slot
- 1x PCIe 6.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
M.2:
- 2x M.2 PCIe 4.0 x4 NVMe slots (M-key)
- LAN: 1x RJ45 1 GbE Dedicated BMC LAN port
- USB: 2x USB 3.0 ports (rear)
- Video: 1x VGA port
- TPM: 1x TPM header
- SuperCloud Composer (SCC)
- Supermicro Server Manager (SSM)
- Super Diagnostics Offline (SDO)
- KVM with dedicated LAN
- IPMI 2.0
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA)
- IPMIView
- 6x counter-rotating 60x60x56mm Fan(s)
- 1x Air Shroud
- 2x 2700W Redundant (1 + 1) Titanium Level (96%) power supplies
Form Factor: 2U Rackmount
Height:
- 3.47" (88 mm)
Width:
- 17.25" (438 mm)
Depth:
- 30.7" (780 mm)
Weight:
- Gross Weight: 83.78 lbs (38 kg)
- Net Weight: 61.73 lbs (28 kg)
