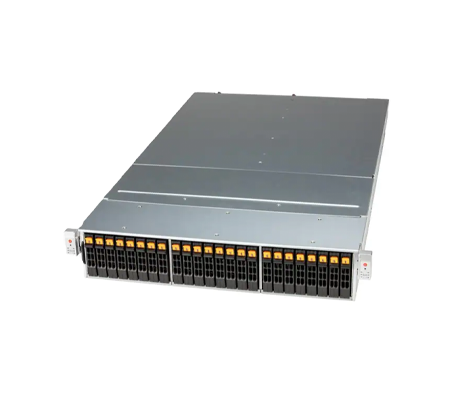

Supermicro Storage SuperServer 221E-DN2R24R

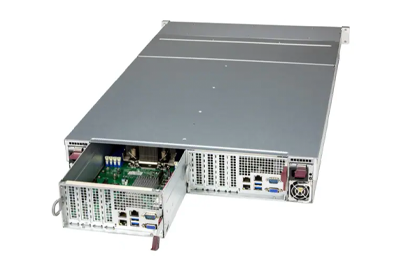

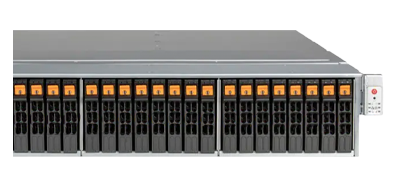

CPUs supported on this system can have a TDP of 150W-350W for air-cooled configurations. Storage on the Supermicro 221E-DN2R24R can be divided between nodes or allocated to just one. Dual ports on each of the drive bays ensures data access is uninterrupted and guards against a single point failure. Each node also supports 2x PCIe 3.0 x4 slots for NVMe M.2 storage devices that can be used to boot the OS. A dedicated 1GbE management port offers remote access to the system, and 2x 10GbE RJ45 ports provide basic network communications. Dual 2000W, redundant Titanium-level PSUs provide power to the system.

For additional options for network communications or storage controllers, there are 2x PCIe 5.0 x16 half-height, half-length (HHHL) slots plus 2x PCIe 5.0 x8 HHHL slots. Network interface controllers (NICs) with data throughput of up to 400Gb/s are supported. There are several software utilities offered by Supermicro provide Administrators with the tools they need to monitor and manage the system. These utilities include SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), and SuperServer Automation Assistant (SAA).
