Supermicro Storage SuperServer 222B-NE3X24R

The 2U front-loading Supermicro Storage SuperServer 222B-NE3X24R is an all-flash system with multiple storage configurations. It is powered by dual Intel Xeon 6 6700 series processors with E-cores, capable of supporting up to 144 cores and 144 threads. CPUs are limited to a maximum TDP of up to 350W. Up to 2x double-width GPUs with a PCIe 5.0 x16 CPU-to-GPU interconnect can be loaded onto the system. This system was built for software-defined storage, in-memory computing, data intensive HPC, NVMe over fabrics solution, and more.
Configure

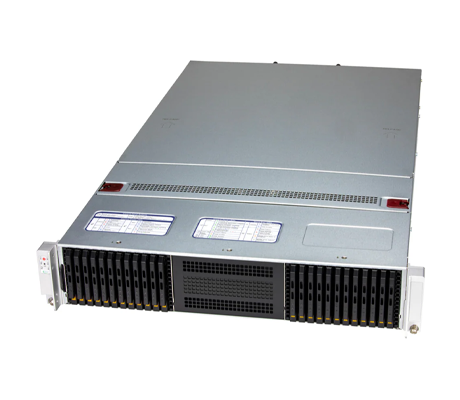

Supermicro Storage 222B-NE3X24R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Storage SuperServer 222B-NE3X24R - System Overview

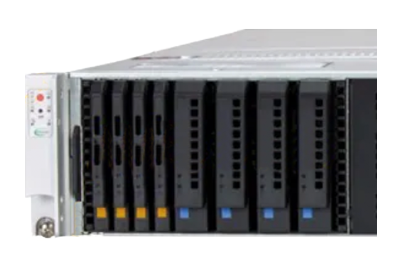

Supermicro Storage SuperServer 222B-NE3X24R front

When all 32x memory module slots are filled with 256GB RDIMMs or LRDIMMs, the Storage SuperServer 222B-NE3X24R offers up to 8TB of DDR5 memory running at up to 6400 MT/s. Management programs include SuperCloud Composer, Supermicro Think-Agent Service (TAS), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA) to help allocate and manage resources.

It is powered by 2x 2000W redundant (1+1) Titanium Level (96%) power supplies and can accommodate several PCIe configurations.

Default

  • 2x PCIe 5.0 x16 FHFL double-width slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • 1x PCIe 5.0 x8 FHFL double-width slots

Option A

  • 1x PCIe 5.0 x8 FHFL double-width slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B

  • 1x PCIe 5.0 x8 FHFL double-width slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option C

  • 2x PCIe 5.0 x16 FHFL double-width slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • 1x PCIe 5.0 x8 FHFL double-width slots

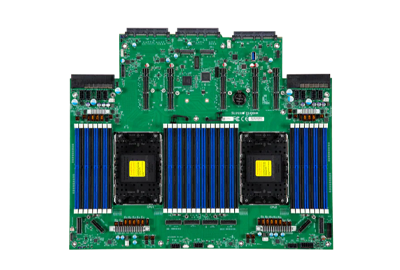

Supermicro Storage 222B-NE3X24R motherboard

To boot the operating system, there are 2x M.2 NVMe slots on the motherboard, which support 2280 or 22110 form factor cards. Aside from this extra storage option, there are 4x different drive bay configurations that can be deployed from the front panel.

Default: Total 24 bay(s)

  • 24x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays

Option A: Total 32 bay(s)

  • 32x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays

Option B: Total 24 bay(s)

  • 16x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • 8x front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays

Option C: Total 16 bay(s)

  • 8x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • 8x front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays

*This server is sold as a completely assembled system with a minimum of 2x CPUs, 4x DIMMs, 1x AIOM/AOC NIC, 1x storage device, and 1x server-grade M.2 card.

Supermicro Storage SuperServer 222B-NE3X24R - Specifications

Processor - 2 Sockets

  • Intel Xeon 6 6700 series processors with E-cores
  • Up to 144C/144T; Up to 108MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)​

    • Socket:

  • Dual Socket E2 (LGA-4710)

Motherboard

  • Super X14DBHM

GPU

  • Up to 2x double-width GPUs
  • PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 8TB ECC DDR5 RDIMM/LRDIMM

    • Memory Speed:

  • Up to 6400MT/s

Drive Bays

    Default: Total 24 bay(s)

    • 24x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
    Option A: Total 32 bay(s)
    • 32x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
    Option B: Total 24 bay(s)
    • 16x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
    • 8x front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays
    Option C: Total 16 bay(s)
    • 8x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
    • 8x front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays

    M.2:

  • 2x M.2 NVMe slots
  • Form Factor: 2280/22110

Expansion Slots

    Default
    • 2x PCIe 5.0 x16 FHFL double-width slots
    • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • 1x PCIe 5.0 x8 FHFL double-width slots
    Option A
    • 1x PCIe 5.0 x8 FHFL double-width slots
    • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    Option B
    • 1x PCIe 5.0 x8 FHFL double-width slots
    • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    Option C
    • 2x PCIe 5.0 x16 FHFL double-width slots
    • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • 1x PCIe 5.0 x8 FHFL double-width slots

On-Board Devices

    NVMe:

  • NVMe; RAID 0/1/5/10 support(VROC HW key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

Fans

  • 4x 8cm heavy duty fans with optimal fan speed control

Power Supply

  • 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

Chassis

    Enclosure:

    Height: 3.47" (88mm)

    Width: 17.25" (438mm)

    Depth: 30.47" (780mm)

    Gross Weight: 83.78 lbs (38 kg)

    Net Weight: 61.73 lbs (28 kg)
