Supermicro Storage SuperServer 521E-E1CR24L

The single-socket Supermicro Storage SuperServer 521E-E1CR24L supports a 4th generation Intel Xeon Scalable processor, as well as 5th generation Intel Xeon Scalable CPUs, with a TDP of up to 300W. When all 16x memory module slots are populated with 256GB RDIMMs, this system can be outfitted with up to 4TB of DDR5 memory. There are 12x 3.5" hot-swap SATA3/SAS3 drive bays lining the front of the chassis with another set of 12x sitting right behind in a pop up drive cage. An additional 2x 2.5" hot-swap SATA3 drives can be found in the rear with the option to add 4x more NVMe drive bays for 30 drive bays total.
Configure

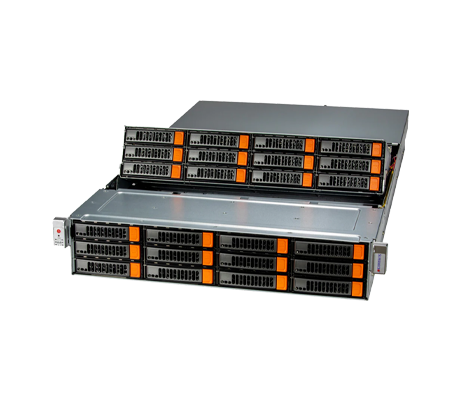

Supermicro Storage SuperServer 521E-E1CR24L side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Storage SuperServer 521E-E1CR24L - System Overview

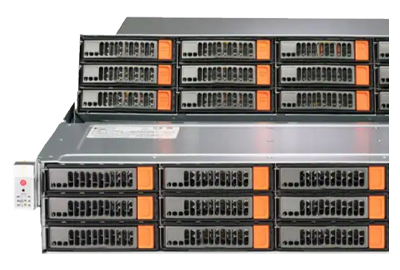

Supermicro 521E-E1CR24L front of system

The Supermicro 521E-E1CR24L is a versatile system with many features designed for data processing and storage, corporate databases, and iSCSI SAN. In addition to the high-density storage, the system has 2x internal SATA3 or NVMe M.2 slots that can be used to boot the system. The back of this machine allows access to a dedicated PCIe 5.0 x16 AIOM slot, which is OCP 3.0 SFF compliant. Up to 6x PCIe 5.0 slots are present but slot #2 is populated by a Broadcom 3908 controller by default. A dedicated RJ45 IPMI LAN port to manage the system provides KVM over LAN and media over LAN support. 2x SuperDOM ports are also available providing options for additional storage or to boot the system. The server also has two redundant 1600W Titanium level (96%) power supplies.

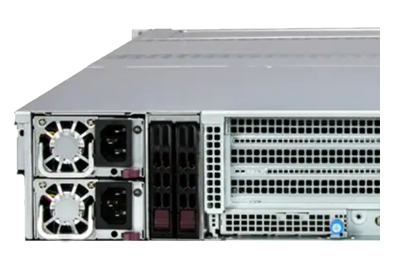

Supermicro 521E-E1CR24L rear of system

Supermicro Storage SuperServer 521E-E1CR24L - Specifications

Processor - 1 Socket

  • 4th and 5th Generation Intel Xeon Scalable Processors
  • Supports 120W - 300W TDP CPUs (Air Cooled)

Memory

    Maximum Memory:

  • Up to 4TB: 16x 256 GB DRAM

    • Memory Slots:

  • 16 x DIMM slots

    • Memory Type:

  • 4800MHz ECC DDR5 RDIMM

Drive Bays

    Hot-swap:

  • 24x 3.5" hot-swap SATA3/SAS3 drive bays
  • 2x 2.5" hot-swap SATA3 rear drive bays

    • M.2:

  • 2x NVMe (1x PCIe 3.0x4, 1x PCIe 3.0x2, Boot drive only)
  • M-Key, 22110 (Default)/2280

On-Board Devices

    Chipset:

  • Intel C741

    • Network Controllers:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

    LAN:

  • 1x Dedicated IPMI LAN port

    • USB:

  • 2x USB 3.0 ports (rear)

    • Video:

  • 1x VGA Port

    • Serial Port:

  • 1x COM Port (rear)

    • DOM:

  • 2x SuperDOM port

System BIOS

  • AMI 32MB SPI Flash EEPROM

Management

  • Super Diagnostics Offline
  • IPMI 2.0, KVM with dedicated LAN
  • Supermicro Update Manager (SUM)
  • Supermicro Power Manager (SPM)
  • Supermicro Server Manager (SSM)
  • SuperDoctor® 5
  • Redfish API

Front Panel

    Buttons:

  • Power On/Off button

    • LEDs:

  • SSD activity LED
  • Network activity LEDs
  • Power status LED
  • System Information LED

Expansion Slots

    Option 1

  • PCIe 5.0 x8
  • PCIe 5.0 x8
  • PCIe 5.0 x16
  • PCIe 5.0 x8
  • PCIe 5.0 x8
  • PCIe 5.0 x16

    • Option 2

  • Rear NVMe N1
  • Rear NVMe N0
  • PCIe 5.0 x16
  • PCIe 5.0 x8
  • PCIe 5.0 x8
  • PCIe 5.0 x16

    • Option 3

  • Rear NVMe N1
  • Rear NVMe N0
  • PCIe 5.0 x16
  • Rear NVMe N3
  • Rear NVMe N2
  • PCIe 5.0 x16

Power Supply

  • 1600W Redundant Titanium Level power supplies

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 34"x 17.2" (437mm) x 3.5" (89mm)

    • Weight

  • Gross Weight: 74.5 lbs (33.79 kg)
  • Net Weight: 52 lbs (23.59 kg)
