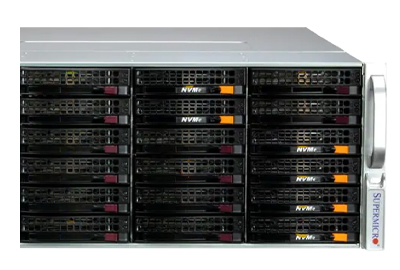

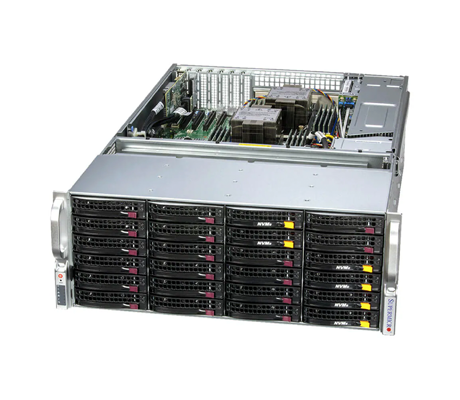

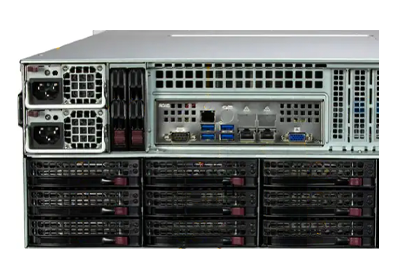

Built for flexible and expansive storage, the Supermicro SuperServer 641E-E1CR36L accommodates 34x hot-swap drive bays in total with 24x 3.5" SAS/SATA bays at the front, 12x 3.5" SAS/SATA bays at the rear, plus 2x 2.5" rear SATA bays for additional storage options. Bringing the total to 36x drives are 2x PCIe 4.0 x2 NVMe slots on the motherboard for M.2 drives. Administrators can also configure 6x front hot-swap 3.5" PCIe 5.0 x4 NVMe bays with an optional storage controller or cabling. The motherboard on the system supports an HBA Controller via a Broadcom 3808.
Expansion is supported through 6x PCIe 5.0 slots with 4x PCIe 5.0 x16 and 2x PCIe 5.0 x8 low-profile slots. For system monitoring and management, users can deploy Supermicro SuperDoctor 5 (SD5) for real-time insights into power usage, fan speeds, and CPU temperatures, with automatic alerts via email or Simple Network Management Protocol (SNMP). Additional software options include SuperCloud Composer, Supermicro Server Manager, and SuperServer Automation Assistant. The Supermicro 641E-E1CR36L is powered by 2x 1600W redundant Titanium-level hot-plug power supplies.
Default: Total 38 bays
Option A: Total 6 bays
M.2:
Default:
Chipset:
Network Connectivity:
