Supermicro SuperBlade 422B-1NE14

The Supermicro SuperBlade 422B-1NE14 has a compact depth of 23.5 inches, allowing for the deployment of up to 20x nodes within the 8U SuperBlade Enclosure 820 series (SBE-820). This single-width blade features dual Intel Xeon 6 processors. Compatible CPUs support a thermal design power (TDP) of up to 205W when air-cooled. It offers up to 4x hot-swap E1.S NVMe drive bays conveniently located on the front panel of each node.
Configure
Supermicro SuperBlade 422B-1NE14 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 422B-1NE14 - System Overview

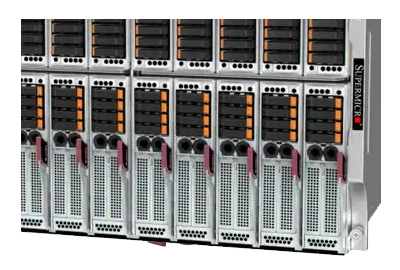

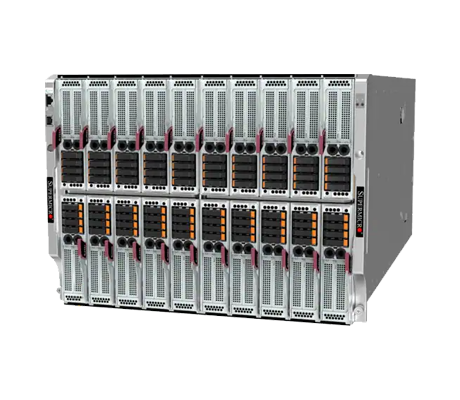

Supermicro SuperBlade 422B-1NE14 front of nodes Supermicro SuperBlade 422B-1NE14 node

Designed for high-performance computing, electronic design automation (EDA), cloud environments, and enterprise data centers, the Supermicro 422B-1NE14 is compatible with several SuperBlade Enclosures. It features 16x DDR5 DIMM slots, with 8x memory module slots per socket for up to 4TB of memory. Multiplexed Rank DIMMs or MRDIMMs are also supported and offer memory speeds of up to 8000MT/s compared to RDIMMs which can provide up to 6400MT/s. Supported CPUs include the Intel Xeon 6700 and 6500 series CPUs, with P-cores or E-cores. They offer 8-channel memory architecture, and with 16x memory module slots support a single DIMM per channel (1DPC) for maximum memory speed.

In addition to the front-facing drive bays, the server board accommodates 1x NVMe M.2 slot for 2280 form factor cards and can optionally support 4x additional M.2 NVMe drives via a mezzanine card located at the rear of the blade. This configuration enables each node to support a total of 9x NVMe drives, maximizing storage capacity and performance.

An adjacent OCP 3.0 PCIe 5.0 x16 AIOM mezzanine card slot supports InfiniBand NDR and NDR200. Both air and liquid cooling solutions are available. In addition to the mezzanine card slot and OCP 3.0 slot, the SuperBlade 422B-1NE14 comes equipped with an onboard dual 25G Ethernet LAN on Motherboard (LOM). This versatile blade can be integrated into several enclosures with management provided at the chassis level with management modules located on the back of the chassis.

SuperBlade Enclosure 820H-822

  • 8 hot-plug 2200W Titanium (96% efficiency) power supplies

    • SuperBlade Enclosure 820H-622

  • 6 hot-plug 2200W Titanium (96% efficiency) power supplies

    • SuperBlade Enclosure 820C-822

    • 8 hot-plug 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820C-622

    • 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

    SuperBlade Enclosure 820C-422

    • 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

    SuperBlade Enclosure 820J-822

    • 25G Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820J-622

    • 25G Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

    SuperBlade Enclosure 820J-422

    • 25G Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

    SuperBlade Enclosure 820L-822

    • 8 hot-plug 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820L-622

    • 6 hot-plug 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820L-422

    • 4 hot-plug 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820J2-630

    • Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820J2-830

    • Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820J2-422

    • Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820J2-622

    • Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820J2-822

    • Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820H2-830

    • 8 hot-plug 3000W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820H2-822

    • 8 hot-plug 2200W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820H2-630

    • 6 hot-plug 3000W Titanium (96% efficiency) power supplies

    SuperBlade Enclosure 820H2-622

    • 6 hot-plug 2200W Titanium (96% efficiency) power supplies

    *This system is only sold only as a complete system with at least 1x CPU, 1x DIMM, and 1x HDD/SSD.

    Supermicro SuperBlade 422B-1NE14 - Specifications

    Server Nodes/Enclosure

    • 100 servers per 42U rack

    Enclosure

    • SBE-820H-822/622
    • SBE-820C/J/L-822/622/422
    • SBE-820J2-830/630/822/622/422
    • SBE-820H2-830/630/822/622

    Processor - 2 Sockets

    • Intel Xeon 6 6700/6500 series processors with P-cores or E-Cores
    • Up to 205 TDP (air cooled)

      • Socket:

    • Dual Socket E2 (LGA-4710)

    Motherboard

    • MBD-B14DBT

    Memory

      Memory Slots

    • 16 x DDR5 DIMM slots

      • Memory Type

    • Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
    • Up to 512GB MRDIMM with speed 8000MT/s in 1DPC memory population

    Storage

      Hot-Swap:

    • 4x E1.S NVMe drives

      • M.2:

    • 1x NVMe M.2 2280 (onboard)

      • Optional

    • 4x M.2 NVMe via mezzanine card

    Expansion Slots

    • 1x OCP 3.0 card compliant including IB NDR or IB NDR200

    BIOS Type

    • 256Mb SPI Flash EEPROM with AMI BIOS

    On-Board Devices

      Chipset:

    • System on Chip

      • Network Controllers:

    • Onboard Dual 25G Ethernet
    • 1x expansion slot w/ optional mezzanine cards
    • 1x expansion slot for OCP 3.0 compliant card (including IB NDR/NDR200)

      • Management/Security:

    • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

      • Graphics:

    • Aspeed AST2600

    Chassis

      Enclosure:

      Height: 1.75" (44.45mm)

      Width: 6.5" (165.1mm)

      Depth: 23.5" (596.9mm)

      Weight: 9.5 lbs (4.3 kg)

    Supermicro SuperBlade 422B-1NE14 - Documentation

    Supermicro SuperBlade 422B-1NE14 Specs Supermicro SuperBlade 422B-1NE14 User Manual Supermicro X14 SuperBlade Data Sheet Supermicro SuperBlade 8U Enclosures User Manual
