Supermicro SuperBlade 422B-5NE14

The Supermicro SuperBlade 422B-5NE14 is a dual socket system compatible with Intel Xeon 6 6700 and 6500 series processors with P-cores or E-Cores. These CPUs support a maximum TDP of 205W when air cooled at 35°C. Up to 10x 23.5-inch depth blades can be installed into an 8U or 6U enclosure. The front of the node includes 4x hot-swap E1.S NVMe drive bays, but there is also an option to install 4x M.2 NVMe drives via a mezzanine card, plus 1x NVMe M.2 2280 form factor card on the server board for a total of 9x storage devices.
Configure

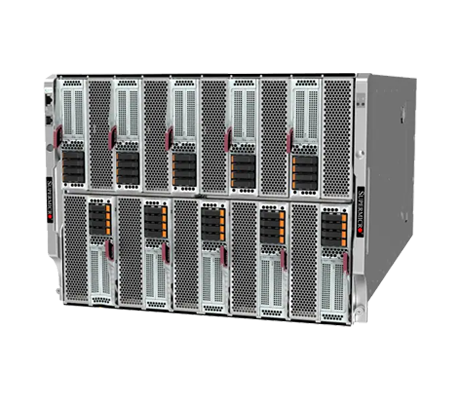

Supermicro SuperBlade 422B-5NE14 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 422B-5NE14 - System Overview

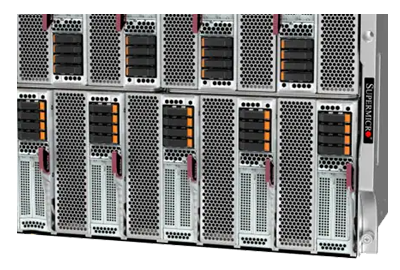

Supermicro SuperBlade 422B-5NE14 front of nodes

Built for enterprise data centers, electronic design automation (EDA), cloud computing, and high-performance applications, the SuperBlade 422B-5NE14 supports dual 25G ethernet ports and an OCP 3.0 PCIe 5.0 x16 AIOM slot, compatible with InfiniBand 100G EDR, 200G HDR, and 400G NDR. Each CPU socket supports 8x DDR5 Registered DIMMs (RDIMMs) or 3DS RDIMMs delivering speeds of up to 6400 MT/s. Multiplexed Rank DIMMs or MRDIMMs are also supported and offer memory speeds of up to 8000MT/s. The Supermicro 422B-5NE14 can be deployed in a range of 6U or 8U enclosures.

SuperBlade Enclosure 820J2-630

  • Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820J2-830

  • Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820J2-422

  • Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820J2-622

  • Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820J2-822

  • Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820H2-830

  • 8 hot-plug 3000W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820H2-822

  • 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820H2-630

  • 6 hot-plug 3000W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 820H2-622

  • 6 hot-plug 2200W Titanium (96% efficiency) power supplies

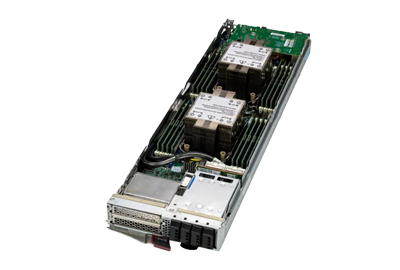

Supermicro SuperBlade 422B-5NE14 node

The enclosures are designed to help lower costs by providing the power, cooling, networking, and centralized management in a high-density form factor. 10x half-height, dual-socket servers, such as the 422B-5NE14 can provide up to 20 CPUs and 2,880 processing E-cores in 8U, making it ideal for scale out in an enterprise data center. The enclosures also support optional liquid cooling, ensuring optimal performance under extreme load. Management from a central location also helps to reduce wiring complexity and the need for additional switches. With an integrated Aspeed AST2600 management module, the system is compatible with IPMI 2.0 and Redfish API standards and also offers KVM over IP.


*This SuperBlade can only be purchased as a complete system with at least 1x CPU, 1x DIMM, and 1x HDD/SSD.

Supermicro SuperBlade 422B-5NE14 - Specifications

Server Nodes/Enclosure

  • 50 servers per 42U rack

Enclosure

  • SBE-820J2-830/630/822/622/422
  • SBE-820H2-830/630/822/622

Processor - 2 Sockets

  • Intel Xeon 6 6700/6500 series processors with P-cores or E-Cores
  • Up to 350W TDP

    • Socket:

  • Dual Socket E2 (LGA-4710)

Motherboard

  • MBD-B14DBT

Memory

    Memory Slots

  • 16 x DDR5 DIMM slots

    • Memory Type

  • Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
  • Up to 512GB MRDIMM with speed 8000MT/s in 1DPC memory population

Storage

    Hot-Swap:

  • 4x E1.S NVMe drives

    • M.2:

  • 1x NVMe M.2 2280 (onboard)

    • Optional

  • 4x M.2 NVMe via mezzanine card

Expansion Slots

  • 1x OCP 3.0 network card

BIOS Type

  • 256Mb SPI Flash EEPROM with AMI BIOS

On-Board Devices

    Chipset:

  • Intel C741 Chipset

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • 1x Mezzanine expansion slot and 3x different optional Mezzanine card
  • 1x OCP 3.0 network card (option)
  • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR*

    • Management/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 6.5" (165.1mm)

    Depth: 23.5" (596.9mm)

    Weight: 11.5 lbs (5.2 kg)

Supermicro SuperBlade 422B-5NE14 - Documentation

Supermicro SuperBlade 422B-5NE14 Specs Supermicro SuperBlade 422B-5NE14 User Manual Supermicro X14 SuperBlade Data Sheet Supermicro SuperBlade 8U Enclosures User Manual
