Supermicro SuperBlade 611E-1C2N

Designed for Enterprise Data Centers and Cloud Computing applications, the Supermicro SuperBlade 611E-1C2N blade server houses a single 4th or 5th Generation Intel Xeon Scalable processor. It has 16x DDR5 DIMM slots compatible with Intel Optane Persistent Memory (PMem) 300 series modules. 2x hot-swappable U.2 NVMe/SAS/SATA drive bays are accessible from the front of the Supermicro 611E-1C2N plus a slot on the motherboard for an NVMe M.2. It has 2x 25G LOM connectors plus a single PCIe 5.0 expansion slot which can support either a double width GPU or 2x single-width cards.
Configure

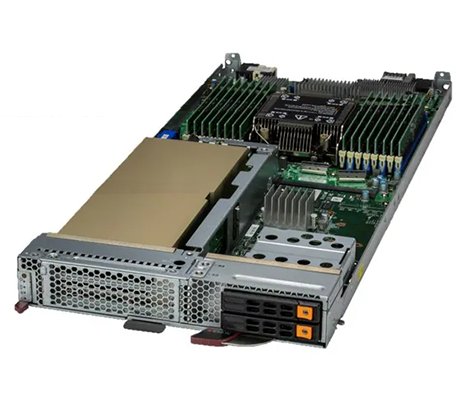

Supermicro 611E-1C2N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 611E-1C2N - System Overview

Additional Information

Supermicro 611E-1C2N top detail Supermicro 611E-1C2N detail top

Designed for Enterprise Data Centers and Cloud Computing applications, the Supermicro 611E-1C2N blade server is compatible with several Supermicro SuperBlade Enclosures. It supports 2x hot-swappable U.2 NVMe/SATA/SAS drive bays on the front of the system. Two PCIe Gen5 x16 slots can house a full-size GPU or two single slot GPUs and include the NVIDIA H100, L40S, L40, and A100. A connection to a network is achieved via the enclosure with Ethernet switch modules providing dual 25G Ethernet ports. An additional 2x 25GbE ports are available via adding a mezzanine expansion card on the server node. The Supermicro SuperBlade Enclosure is designed to handle system management, cooling, networking, and power with up to 8x 3000W Titanium power supplies.

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

Supermicro 611E-1C2N Enclosure

Compatible SuperBlade Enclosures

  • Supermicro SuperBlade Enclosure 610J2-822
  • Supermicro SuperBlade Enclosure 610J2-622
  • Supermicro SuperBlade Enclosure 610J2-422

Supermicro SuperBlade 611E-1C2N - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
  • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
  • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
  • Up to 350W TDP CPUs (Air Cooling)
  • Up to 300W TDP CPUs (Air Cooling at 35°C)

    • *Certain CPUs with higher TDP may be supported under specific conditions.

    Socket:

  • 1 x LGA-4677

Motherboard

  • MBD-B13SEE-CPU-25G

Memory

    Memory Slots

  • 16 x DDR5 DIMM slots

    • Memory Type

  • RDIMM
  • Intel Optane Persistent Memory (PMem) 300 series

    • Memory Speed

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 2 x Hot-swap U.2 NVMe/SAS/SATA; HW RAID with Broadcom 3108

    • M.2:

  • 1 x M.2 2280/22110 NVMe/SATA3 drive (onboard)

Expansion Slots

  • 1 x PCIe Gen5 x16 slot
  • 1 x PCIe Gen5 x8 slot

  • Support 1 FHFL DW GPU or 2 SW PCIe cards

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • 1 x Mezzanine expansion slot
  • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

    • Management/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 9.75" (228.6mm)

    Width: 1.75" (44.45mm)

    Depth: 23.5" (596.9mm)

Supermicro SuperBlade 611E-1C2N - Documentation

Supermicro SuperBlade Server 611E-1C2N User's Manual Supermicro SuperBlade Server 611E-1C2N Specs Sheet
