Supermicro SuperBlade 611E-1T2N

The Supermicro SuperBlade 611E-1T2N houses a single CPU socket compatible with a 4th or 5th Generation Intel Xeon Scalable processor. It is designed for Enterprise Data Centers, Cloud Computing, and AI/ML applications. 16x DDR5 DIMM slots on the system board are compatible with ECC RDIMMs and Intel Optane Persistent Memory (PMem) 300 series. Dual hot-swap 2.5-inch U.2 NVMe/SATA3 drive bays are available on the front of the server. In addition, 3x M.2 NVMe drive slots can be found on the system board with an optional 2x E1.S drive also supported for up to 7x drives total. 2x PCIe 5.0 expansion slots are available and can support either a double-width GPU or 2x single-width cards on the Supermicro 611E-1T2N.
Configure

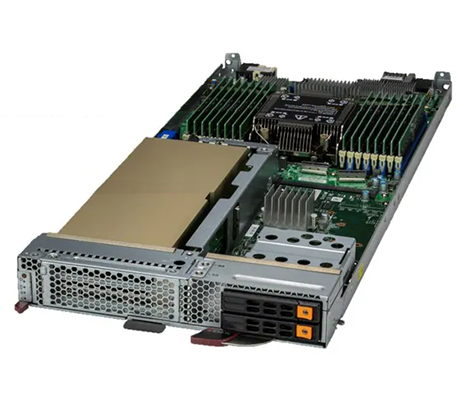

Supermicro 611E-1T2N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 611E-1T2N - System Overview

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

Supermicro 611E-1T2N top detail Supermicro 611E-1T2N detail top

Available Configurations

Explore available configurations for the Supermicro SuperBlade 611E-1T2N. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro SuperBlade 611E-1T2N - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
  • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
  • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
  • Up to 350W TDP CPUs (Air Cooling)
  • Up to 300W TDP CPUs (Air Cooling at 35°C)

    • *Certain CPUs with higher TDP may be supported under specific conditions.

    Socket:

  • 1 x LGA-4677

Motherboard

  • MBD-B13SEE-CPU-25G

Memory

    Memory Slots

  • 16 x DDR5 DIMM slots

    • Memory Type

  • RDIMM
  • Intel Optane Persistent Memory (PMem) 300 series

    • Memory Speed

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 2 x Hot-swap 2.5" U.2 NVMe/SATA3 drive bays

    • M.2:

  • 3 x M.2 2280/22110 NVMe drives per blade

    • E1.S

  • 2 x E1.S drive support

Expansion Slots

  • 1 x PCIe Gen5 x16 slot
  • 1 x PCIe Gen5 x8 slot

  • Support 1 FHFL DW GPU or 2 SW PCIe cards

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • 1 x Mezzanine expansion slot
  • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

    • Management/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 9.75" (228.6mm)

    Width: 1.75" (44.45mm)

    Depth: 23.5" (596.9mm)

Supermicro SuperBlade 611E-1T2N - Documentation

Supermicro SuperBlade Server 611E-1T2N User's Manual Supermicro SuperBlade Server 611E-1T2N Specs Sheet
