Supermicro SuperBlade 611E-5T2N

Compatible with 4th and 5th Generation Intel Xeon Scalable processors the Supermicro SuperBlade 611E-5T2N has a single CPU socket. It is an ideal system for Enterprise Data Centers, Cloud Computing, and AI/ML applications. The motherboard has 16x DDR5 DIMM slots compatible with ECC RDIMM and Intel Optane Persistent Memory (PMem) 300 series modules. Dual hot-swap 2.5-inch U.2 NVMe/SATA3 drive bays are accessible from the front, and there are 3x M.2 NVMe drive slots on the system board. An additional 2x E1.S drive are supported. The front of the Supermicro 611E-5T2N also houses 2X PCIe 5.0 slot which can hold up to 2x single-width cards or 1x double-width GPU.
Configure

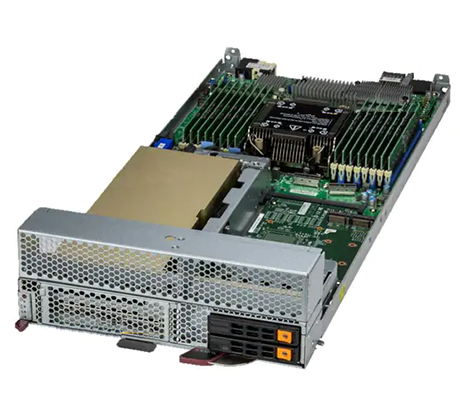

Supermicro 611E-5T2N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 611E-5T2N - System Overview

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

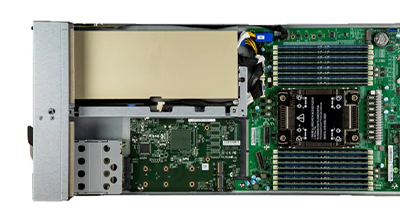

Supermicro 611E-5T2N top detail Supermicro 611E-5T2N detail top

Available Configurations

Explore available configurations for the Supermicro SuperBlade 611E-5T2N. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro SuperBlade 611E-5T2N - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
  • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
  • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
  • Up to 350W TDP CPUs (Air Cooling)

    • Socket:

  • 1 x LGA-4677

Motherboard

  • MBD-B13SEE-CPU-25G

Memory

    Memory Slots

  • 16 x DDR5 DIMM slots

    • Memory Type

  • RDIMM
  • Intel Optane Persistent Memory (PMem) 300 series

    • Memory Speed

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 2 x Hot-swap 2.5" U.2 NVMe/SATA3 drive bays

    • M.2:

  • 3 x M.2 2280/22110 NVMe drives per blade

    • E1.S

  • 2 x E1.S drive support

Expansion Slots

  • 1 x PCIe Gen5 x16 slot
  • 1 x PCIe Gen5 x8 slot

  • Support 1 FHFL DW GPU or 2 SW PCIe cards

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • 1 x Mezzanine expansion slot
  • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

    • Management/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 9.75" (228.6mm)

    Width: 3.5" (44.45mm)

    Depth: 23.5" (596.9mm)
