Supermicro SuperBlade 612B-1C2N - System Overview

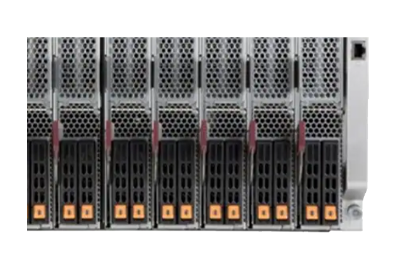

With a single DIMM per Channel (1DPC), memory can run at speeds of up to 6400 MT/s. Fully populated with memory modules in a 2DPC configuration will reduce emmory speed to 5200MT/s. Ideal for enterprise applications, engineering and scientific research, plus virtualization and financial workloads, the SuperBlade 612B-1C2N can support either 1x double-width or 2x single-width GPUs. GPUs are loaded into 2x PCIe Gen5 x16 slots. The front panel features 2x hot-swap 2.5" U.2 NVMe/SAS3 drive bays that support RAID 0 & 1, and are managed by a Broadcom 3108 controller. Additionally, there is 1x M.2 slot for an NVMe or SATA drive, compatible with both 2280 and 22110 form factors.
The Supermicro 612B-1C2N offers onboard dual 25G Ethernet option, along with support for standard InfiniBand or GbE PCIe cards. This flexible system can be used with a range of 6U or 8U enclosures.
SuperBlade Enclosure 610J-422
- Up to 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans
SuperBlade Enclosure 610J-622
- Up to 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans
SuperBlade Enclosure 610J-822
- Up to 8 hot-plug 2200W Titanium (96% efficiency) power supplies
SuperBlade Enclosure 610J2-422
- Up to 4 hot-swappable 2200W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-622
- Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
SuperBlade Enclosure 610J2-822
- Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
SuperBlade Enclosure 610J2-430
- Up to 4 hot-swappable 3000W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-630
- Up to 6 hot-swappable 3000W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-830
- Up to 8 hot-swappable 3000W Titanium (96% efficiency) PSUs

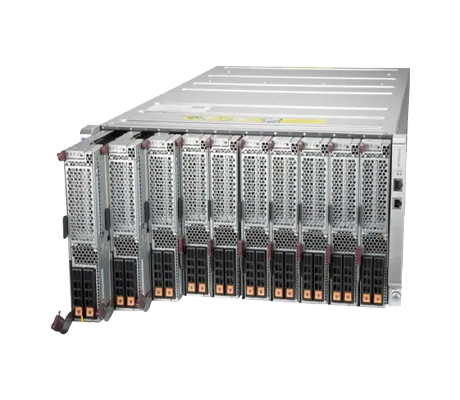

A single or redundant Chassis Management Module (CMM) supported by the enclosure provides centralized management of installed hot-swap server blades. In addition, the enclosure provides the power, cooling and network interface controllers (NICs), which requires less wiring and a reduced need for complex network switches. Up to 10x of these 612B-1C2N server nodes can be installed in a 6U Enclosure.
*This SuperBlade can only be purchased as a complete system with at least 1x CPU, 1x DIMM, and 1x HDD/SSD.
Available Configurations
Explore available configurations for the Supermicro SuperBlade 612B-1C2N. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
