Supermicro SuperBlade 612B-5NE34

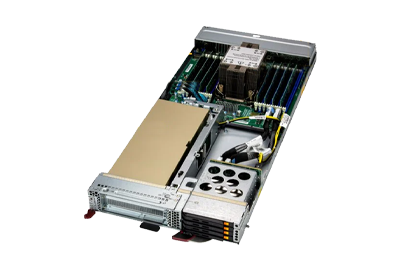

Built for virtualization, engineering, scientific research applications and more, the Supermicro SuperBlade 612B-5NE34 features 1x Intel Xeon 6700 or 6500 series processor with E-Cores or P-cores. These CPUs support a maximum TDP of up to 350W and 2x double-width or single-width GPUs or up to 4x Network Interface Controllers (NICs). To each side of the Intel processor there are 8x DIMM slots for a total of 16x DDR5 slots. This SuperBlade server is supported in several SuperBlade Enclosures.

Overview

Supermicro SuperBlade 612B-5NE34 - System Overview

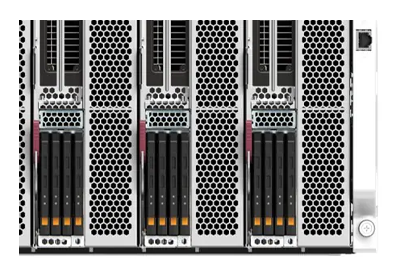

Supermicro SuperBlade 612B-5NE34 front of nodes

The Intel Xeon 6700 and 6500-series CPUs offer 8-channel memory architecture. At full capacity, with 2x DIMMs per Channel (2DPC) the system can provide up to 4TB of memory. With 1x DIMM per channel memory speeds of up to 6400MT/s can be achieved but with 2DPC memory speeds are reduced to 5200MT/s second or even less depending on the choice of CPU and memory modules. On the front of the 23.5-inch blade there are 4x hot-swap E3.S NVMe drive bays which can be configured to RAID 0, 1, 5, or 10 with an optional Virtual RAID on CPU (VROC) key. Similarly, the SuperBlade 612B-5NE34 has 1x M.2 NVMe slot on the system board compatible with 2280 form factor cards.

SuperBlade Enclosure 610J2-430

Up to 4 hot-swappable 3000W Titanium (96% efficiency) PSUs

SuperBlade Enclosure 610J2-630

Up to 6 hot-swappable 3000W Titanium (96% efficiency) PSUs

SuperBlade Enclosure 610J2-830

Up to 8 hot-swappable 3000W Titanium (96% efficiency) PSUs

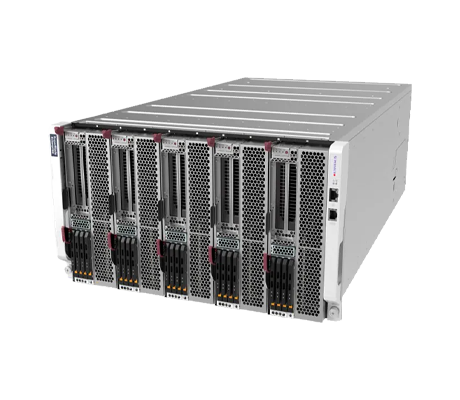

Up to 5x Supermicro 612B-5NE34 nodes can be installed into various enclosures for up to 35 servers per 42U rack. In addition to the 2x PCIe Gen5 x16 slots for the GPUs, and aside from the existing dual-port 25G Ethernet (LOM) port, there is a mezzanine expansion option for dual 25GbE networking ports. The SuperBlade enclosures provide the power, cooling, network communications, and management. There are 1x or 2x Chassis Management Modules (CMMs) on the back of the chassis that are used to manage all server nodes in the enclosure. The CMMs are IPMI 2.0 and Redfish API compatible and offer KVM support.

*This node can only be purchased as a complete system and should include at least 1x CPU, 1x DIMM, and 1x HDD/SSD.

Specifications

Supermicro SuperBlade 612B-5NE34 - Specifications

Server Nodes/Enclosure

35 servers per 42U rack

Enclosure

SBE-610J2-830/630/430

Processor - 1 Socket

Intel Xeon 6 6700/6500 series processors with P-Cores or E-Cores
Up to 350W TDP (air cooled at 35°C)

Socket:

Single Socket E2 (LGA-4710)

Motherboard

MBD-B14SBE-CPU-25G

Memory

16 x DDR5 DIMM slots

Maximum Memory

Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
Up to 512GB MRDIMM with speed 8000MT/s in 1DPC memory population

Storage

4x E3.S NVMe drive bays
RAID 0/1/5/10 support (Intel VROC RAID key required)

M.2:

1x M.2 2280 NVMe drive

GPU

Up to 4x PCIe slots: 2x double-wide GPUs, or 4x network cards

Expansion Slots

2x PCIe Gen5 x16 slot, support 1x FHFL DW PCIe card or 2x SW PCIe cards

BIOS Type

AMI 256MB SPI Flash EEPROM

On-Board Devices

System on Chip

NVMe:

NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)

Network Controllers:

Dual 25G Ethernet
1x Mezzanine expansion slot for 2-port 25G Ethernet

Chassis

Height: 3.4"

Width: 9.83"

Depth: 24"

Weight: 7.7 lbs

Documentation

Supermicro SuperBlade 612B-5NE34 - Documentation

Supermicro SuperBlade 612B-5NE34 Specs Supermicro SuperBlade 612B-5NE34 User Manual Supermicro SuperBlade 612B-5NE34 Quick Reference Guide Supermicro X14 SuperBlade Data Sheet Supermicro SuperBlade 6U Enclosures User Manual
