Supermicro SuperBlade 621E-1C3N

The Supermicro SuperBlade 621E-1C3N has 2x CPU sockets compatible with 4th or 5th Generation Intel Xeon Scalable and Xeon CPU Max series CPUs. Each socket supports 16x DDR5 DIMM slots for a total of 32x DIMM slots compatible with ECC RDIMMs and Intel Optane Persistent Memory (PMem) 300 series modules. There are 2x hot-swap U.2 NVMe/SAS/SATA drive bays on the front of the blade and a single hot-swap SAS drive bay. Dual 25GbE ethernet ports on the rear of the Supermicro 621E-1C3N can connect this server to the rest of your IT infrastructure.
Configure

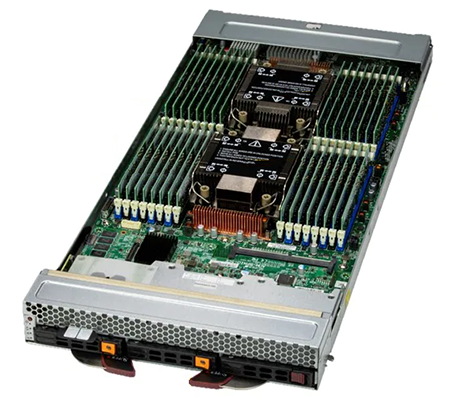

Supermicro 621E-1C3N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 621E-1C3N - System Overview

Additional Information

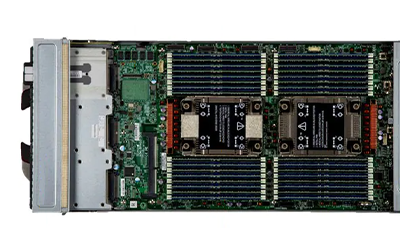

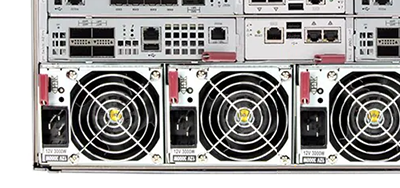

Supermicro 621E-1C3N top detail Supermicro 621E-1C3N detail top

Housed in one of Supermicro’s SuperBlade Enclosures, the Supermicro 621E-1C3N server node is for enterprise applications, as well as Cloud Computing, and Virtual Desktop Infrastructure (VDI). Supermicro SuperBlade Enclosures provide the management, networking, cooling, and power capabilities for the installed SuperBlades like the 621E-1C3N. On the front of the blade, there are 2x hot-swap U.2 NVMe/SAS/SATA drive bays and 1x hot-swap SAS drive bay. A connection to a networking module is provided by the enclosure as well, and supports dual 25G Ethernet ports with the option to add two more 25GbE Ethernet ports via mezzanine card in the server node. The system can also be configured with a liquid cooling solution.

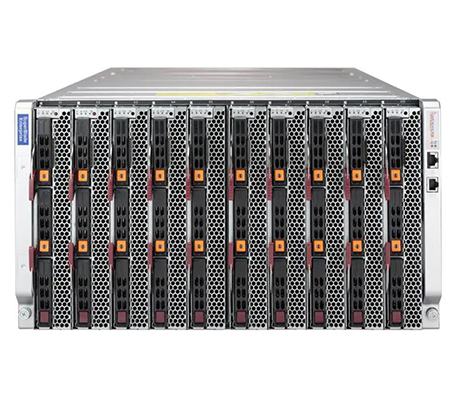

Supermicro 621E-1C3N Enclosure

Compatible SuperBlade Enclosures

  • Supermicro SuperBlade Enclosure 610J-822
  • Supermicro SuperBlade Enclosure 610J-622
  • Supermicro SuperBlade Enclosure 610J-422
  • Supermicro SuperBlade Enclosure 610J2-830
  • Supermicro SuperBlade Enclosure 610J2-630
  • Supermicro SuperBlade Enclosure 610J2-430
  • Supermicro SuperBlade Enclosure 610J2-822
  • Supermicro SuperBlade Enclosure 610J2-622
  • Supermicro SuperBlade Enclosure 610J2-622

    • Supermicro SuperBlade 621E-1C3N - Specifications

    Processor - 2 Sockets

    • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
    • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
    • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
    • Up to 350W TDP CPUs (Direct Liquid Cooling)
    • Up to 225W TDP CPUs (Air Cooling at 35°C)

      • *Certain CPUs with higher TDP may be supported under specific conditions.

      Socket:

    • 2 x LGA-4677

    Motherboard

    • MBD-B13DEE

    Memory

      Memory Slots

    • 32 x DDR5 DIMM slots

      • Memory Type

    • RDIMM
    • Intel Optane Persistent Memory (PMem) 300 series

      • Memory Speed

    • Up to 5600MHz

    Drive Bays

      Hot-Swap:

    • 2 x 2.5" Hot-swap U.2 NVMe/SAS/SATA drive bays + 1 x 2.5" Hot-swap SAS drive bay
    • 3 x 2.5" Hot-swap SAS/SATA drive bay

      • M.2:

    • 1 x Hot-swap SAS drive bay; HW RAID w/ Broadcom 3108

    On-Board Devices

      Chipset:

    • Intel C741 chipset

      • Network Controllers:

    • Onboard Dual 25G Ethernet
    • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

      • Management/Security:

    • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

      • Graphics:

    • Aspeed AST2600

    Chassis

      Enclosure:

      Height: 9.75" (228.6mm)

      Width: 1.75" (44.45mm)

      Depth: 23.5" (596.9mm)

    Supermicro SuperBlade 621E-1C3N - Documentation

    Supermicro SuperBlade 621E-1C3N User's Manual Supermicro SuperBlade 621E-1C3N Specs Sheet
