Supermicro SuperBlade 621E-1T3N

With a total of 32x DDR5 DIMM slots evenly split between each CPU socket, the Supermicro SuperBlade 621E-1T3N is powered by dual 4th or 5th Generation Intel Xeon Scalable CPUs. On the front of the blade server there are 3x hot-swap U.2 NVMe/SATA drive bays. Connecting the Supermicro 621E-1T3N to the rest of your IT infrastructure, is via a mezzanine card connecting to 2x 25GbE ethernet ports on the supported in the Enclosure Ethernet Switch modules. A liquid cooling solution is optional.
Configure

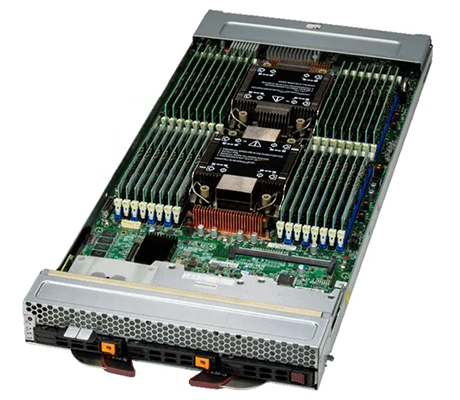

Supermicro 621E-1T3N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 621E-1T3N - System Overview

Additional Information

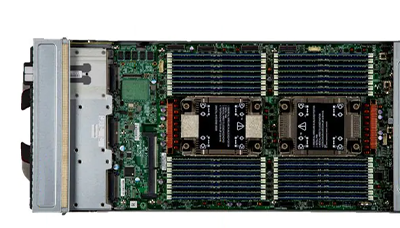

Supermicro 621E-1T3N top detail Supermicro 621E-1T3N detail top

Ideal for Enterprise Data Center applications and Cloud computing, the Supermicro 621E-1T3N is compatible with a range of Supermicro SuperBlade Enclosures. Up to 3x hot-swappable U.2 NVMe/SATA drive bays are accessible from the front of the server. Network connectivity capabilities are provided at the enclosure level with Ethernet switch modules. They provide 25G Ethernet with an option for two more 25GbE via a mezzanine expansion slot on the server node. The enclosure also provides management capabilities for the 621E-1T3N blade server, as well as cooling and power with up to 8x hot-swappable power supplies.

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

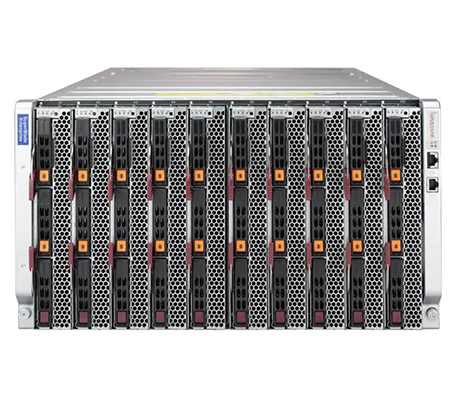

Supermicro 621E-1T3N Enclosure

Compatible SuperBlade Enclosures

  • Supermicro SuperBlade Enclosure 610J-822
  • Supermicro SuperBlade Enclosure 610J-622
  • Supermicro SuperBlade Enclosure 610J-422
  • Supermicro SuperBlade Enclosure 610J2-830
  • Supermicro SuperBlade Enclosure 610J2-630
  • Supermicro SuperBlade Enclosure 610J2-430
  • Supermicro SuperBlade Enclosure 610J2-822
  • Supermicro SuperBlade Enclosure 610J2-622
  • Supermicro SuperBlade Enclosure 610J2-622

    • Supermicro SuperBlade 621E-1T3N - Specifications

    Processor - 2 Sockets

    • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
    • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
    • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
    • Up to 350W TDP CPUs (Direct Liquid Cooling)
    • Up to 205W TDP CPUs (Air Cooling at 35°C)

      • *Certain CPUs with higher TDP may be supported under specific conditions.

      Socket:

    • 2 x LGA-4677

    Motherboard

    • MBD-B13DEE

    Memory

      Memory Slots

    • 32 x DDR5 DIMM slots

      • Memory Type

    • RDIMM
    • Intel Optane Persistent Memory (PMem) 300 series

      • Memory Speed

    • Up to 5600MHz

    Drive Bays

      Hot-Swap:

    • 3 x Hot-swap U.2 NVMe/SATA drive bays

    On-Board Devices

      Chipset:

    • Intel C741 chipset

      • Network Controllers:

    • Onboard Dual 25G Ethernet
    • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

      • Management/Security:

    • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

      • Graphics:

    • Aspeed AST2600

    Chassis

      Enclosure:

      Height: 9.75" (228.6mm)

      Width: 1.75" (44.45mm)

      Depth: 23.5" (596.9mm)

    Supermicro SuperBlade 621E-1T3N - Documentation

    Supermicro SuperBlade 621E-1T3N User Manual Supermicro SuperBlade 621E-1T3N Specs Sheet
