Supermicro SuperBlade 621E-5T3N

Designed with dual CPU sockets, the Supermicro SuperBlade 621E-5T3N is compatible with 4th and 5th Generation Intel Xeon Scalable processors. This blade server is ideal for Enterprise Data Centers, Cloud Computing, and Virtual Desktop Infrastructures. There are 32x DDR5 DIMM slots on this system divided evenly between each CPU socket. Among compatible memory options are Intel Optane Persistent Memory (PMem) 300 series. The front of the system houses 3x 2.5-inch hot-swap U.2 NVMe/SATA drive bays. To connect the Supermicro 621E-5T3N with the rest of your IT infrastructure, there are dial 25GbE ethernet ports available on the rear.
Configure

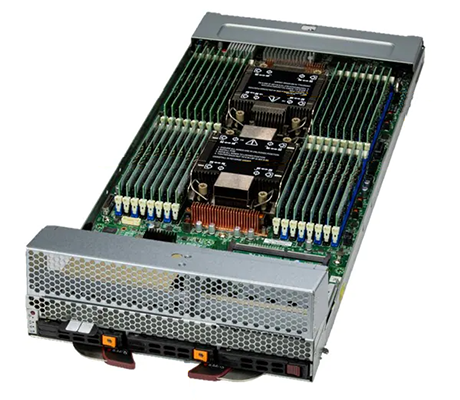

Supermicro 621E-5T3N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 621E-5T3N - System Overview

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

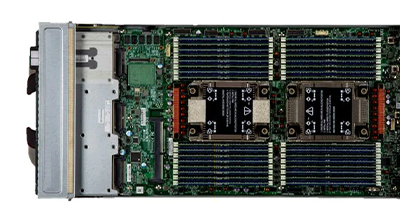

Supermicro 621E-5T3N top detail Supermicro 621E-5T3N detail top

Supermicro SuperBlade 621E-5T3N - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
  • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
  • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
  • Up to 350W TDP CPUs (Air Cooling)

    • Socket:

  • 2 x LGA-4677

Motherboard

  • MBD-B13DEE

Memory

    Memory Slots

  • 32 x DDR5 DIMM slots

    • Memory Type

  • RDIMM
  • Intel Optane Persistent Memory (PMem) 300 series

    • Memory Speed

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 3 x 2.5" Hot-swap U.2 NVMe/SATA drive bays

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

    • Management/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 9.75" (228.6mm)

    Width: 1.75" (44.45mm)

    Depth: 23.5" (596.9mm)

Supermicro SuperBlade 621E-5T3N - Documentation

Supermicro SuperBlade 621E-5T3N User Manual Supermicro SuperBlade 621E-5T3N Specs Sheet
