Supermicro SuperBlade 622B-1NE34

With up to 32x memory module slots and 2x CPUs, the Supermicro SuperBlade 622B-1NE34 can support up to 8TB of DDR5 memory using 2x DIMMs per Channel (2DPM). 2x Intel Xeon 6700/6500 series processors with P-cores or E-cores can be installed. CPUs supported on this platform can have a maximum TDP of up to 205W when air cooled, and up to 330W when liquid cooled.
Configure

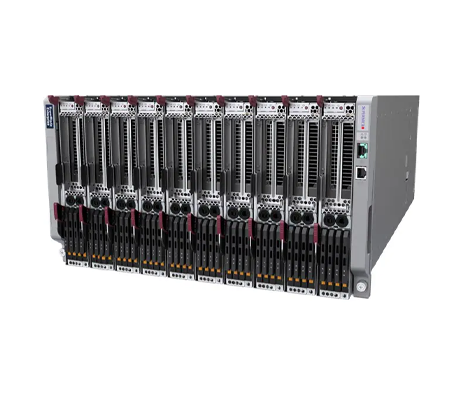

Supermicro SuperBlade 622B-1NE34 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 622B-1NE34 - System Overview

Supermicro SuperBlade 622B-1NE34 front of nodes Supermicro SuperBlade 622B-1NE34 motherboard

The system is able to deliver 2x HHHL single-width PCIe GPU cards using 2x PCIe 5.0 x16 slots. NVIDIA NVLink Bridge is optional. At full capacity, the system can provide up to 8TB of DDR5 3DS Registered DIMMs (RDIMM). With 8-channel memory architecture and 32x memory module slots, memory speed is contingent on configuration of memory and the installed CPU. With 1 DIMM Per Channel (1DPC) memory speeds of up to 6400MT/s are supported. With 2DPC, memory speed is reduced. Furthermore, Certain supported CPUs are limited to 5600MT/s.

COMPATIBLE SUPERBLADE ENCLOSURES

SuperBlade Enclosure 610J-422

  • Up to 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

SuperBlade Enclosure 610J-622

  • Up to 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

SuperBlade Enclosure 610J-822

  • Up to 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 610J2-422

  • Up to 4 hot-swappable 2200W Titanium (96% efficiency) PSUs

SuperBlade Enclosure 610J2-622

  • Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 610J2-822

  • Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies

SuperBlade Enclosure 610J2-430

  • Up to 4 hot-swappable 3000W Titanium (96% efficiency) PSUs

SuperBlade Enclosure 610J2-630

  • Up to 6 hot-swappable 3000W Titanium (96% efficiency) PSUs

SuperBlade Enclosure 610J2-830

  • Up to 8 hot-swappable 3000W Titanium (96% efficiency) PSUs

Designed for enterprise applications, high-performance computing, and virtualization, the Supermicro 622B-1NE34 has 4x hot-swap E3.S NVMe drive bays on the front panel. Additionally, the system board offers 2x M.2 NVMe SSD slots, suitable for 2280 form factor cards, via an adapter. Dual 25GbE LAN on Motherboard ports provide a high-speed network connection, plus there is a mezzanine card option for 2x more 25GbE ports. It is possible to deploy up to 10x SuperBlade 622B-1NE34 nodes across multiple enclosures.


*This blade can only be purchased as a complete system with a minimal configuration of at least 1x CPU, 1x DIMM.

Supermicro SuperBlade 622B-1NE34 - Specifications

Server Nodes/Enclosure

  • 70 servers per 42U rack

Enclosure

  • SBE-610J/J2-422/622/822
  • SBE-610J2-430/630/830

Processor - 2 Sockets

  • 2x Intel Xeon 6 6700/6500 series processors with E-Cores or P-Cores
  • Up to 350W TDP
  • Up to 250W TDP (air cooled)

    • Socket:

  • Dual Socket E2 (LGA-4710)

Motherboard

  • MBD-B14DBE

Memory

    Memory Slots

  • 32 x DDR5 DIMM slots

    • Maximum Memory

  • Up to 8TB ECC Registered RDIMM (3DS), DDR5-6400MT/s
  • Up to 1TB ECC Registered MRDIMM for P-core CPU

Storage

    Hot-Swap:

  • 4x E3.S NVMe drive bays
  • RAID 0/1/5/10 support (Intel VROC RAID key required)

    • M.2:

  • 2x M.2 2280 NVMe SSDs via adapter

GPU

  • PCIe 5.0 x16 CPU-to-GPU interconnect
  • NVIDIA NVLink Bridge (Optional)

Expansion Slots

  • 2x LP PCIe Gen5 x16 GPUs

BIOS Type

  • 64MB SPI Flash EEPROM with AMI® BIOS

On-Board Devices

    Chipset:

  • System on Chip

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • 1x expansion slot w/ optional mezzanine cards

  • Networking AOC-B25G-6X4D - Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN)

    • MGMT/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 1.7""

    Width: 9.83""

    Depth: 24.8"

    Weight: 8.36 lbs

Supermicro SuperBlade 622B-1NE34 - Documentation

Supermicro SuperBlade 622B-1NE34 Specs Supermicro SuperBlade 622B-1NE34 User Manual Supermicro X14 SuperBlade Data Sheet Supermicro SuperBlade 6U Enclosures User Manual
