Supermicro SuperBlade 622B-1NE38

Equipped with dual Intel Xeon 6 processors from the 6700 series featuring E-Cores, the Supermicro SuperBlade 622B-1NE38 supports up to 32x DDR5 RDIMMs or 3DS RDIMMs, delivering speeds of up to 6400 MT/s in a 1DPC configuration. Intel CPUs with a maximum thermal design power (TDP) rating of up to 205W are supported when air-cooled at 35°C and can reach up to 330W with liquid cooling.
Configure

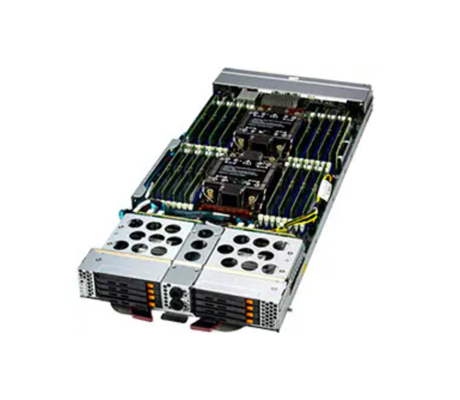

Supermicro SuperBlade 622B-1NE38 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 622B-1NE38 - System Overview

Supermicro SuperBlade 622B-1NE38 front panel enclosure

The SuperBlade 622B-1NE38 is ideal for enterprise applications, scientific research, cloud computing, and more. It supports up to 10x NVMe SSDs with 8x hot-swap E3.S PCIe Gen5 drive bays on the front panel and 2x M.2 slots for 2280 form factor cards, available through an optional adapter. The system includes dual-port 25G Ethernet ports, with the option to add another dual-port 25G Ethernet connection via a mezzanine card. Administrators can deploy up to 70 servers in a 42U rack, with each 6U enclosure capable of housing up to 10 blades. The Supermicro 622B-1NE38 does not support PCIe expansion slots.

Compatible SuperBlade Enclosures:

SuperBlade Enclosure 610J-622

SuperBlade Enclosure 610J-822

  • 8 hot-plug 2200W Titanium (96% efficiency) PSUs

    • SuperBlade Enclosure 610J2-422

    SuperBlade Enclosure 610J2-430

    SuperBlade Enclosure 610J2-630

    SuperBlade Enclosure 610J2-830

    Supermicro SuperBlade 622B-1NE38 motherboard

    This server sled is supported by a Supermicro SuperBlade enclosure, which provides centralized power, cooling, networking, and management reducing cable clutter and the number of switches. The enclosure is also highly redundant with options for dual chassis management controller (CMC) and dual switches for each of two I/O fabrics that offer 1GbE, 10GbE or 25GbE.

    *This system must have at least 1x CPU and 1x DIMM and can only be offered fully assembled.

    Supermicro SuperBlade 622B-1NE38 - Specifications

    Server Nodes/Enclosure

    • 70 servers per 42U rack

    Enclosure

    • SBE-610J/622/822
    • SBE-610J2/422/430/630/830

    Processor - 2 Sockets

    • Intel Xeon 6 6700 series processors with E-Cores
    • Up to 205W TDP (air cooled)

      • Certain CPUs with higher TDP may be supported under specific conditions

      Socket:

    • Dual Socket E2 (LGA-4710)

    Motherboard

    • MBD-B14DBE

    Memory

      Memory Slots

    • 32 x DDR5 DIMM slots

      • Maximum Memory

    • 1DPC with DDR5-6400MT/s ECC RDIMM

    Storage

      Hot-Swap:

    • 8x E3.S NVMe drive bays

      • M.2:

    • 2x M.2 2280 NVMe SSDs via adapter (AOC-SMG4-2M2-F)

    GPU

    • None

    Expansion Slots

    • None

    BIOS Type

    • 64MB SPI Flash EEPROM with AMI® BIOS

    On-Board Devices

      Network Controllers:

    • Onboard Dual 25G Ethernet
    • Optional 2x 25GbE port via Mezzanine expansion slot (AOC-B25G-6X4D - Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN))

      • MGMT/Security:

    • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

      • Graphics:

    • Aspeed AST2600

    Chassis

      Enclosure:

      Height: 9.75" (247.65mm)

      Width: 1.75" (44.5mm)

      Depth: 24.5" (622mm)

      Weight: 15.2 lbs (6.89 kg)

    Supermicro SuperBlade 622B-1NE38 - Documentation

    Supermicro SuperBlade 622B-1NE38 Specs Supermicro X14 SuperBlade Data Sheet Supermicro SuperBlade 6U Enclosures User Manual
