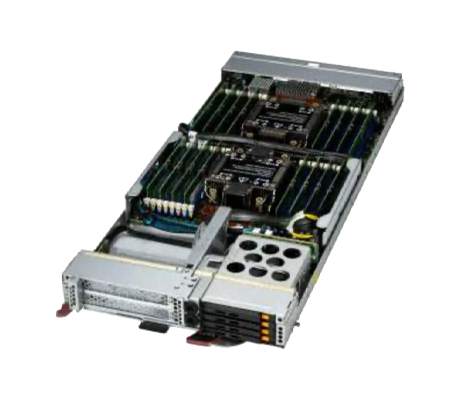

Supermicro SuperBlade 622B-5NE34 - System Overview
RDIMMs or 3DS RDIMMs, can support memory speeds reaching 6400 MT/s. Multiplexed Rank DIMMs (MRDIMMs) can be installed when CPUs with P-cores are present and offer memory speeds of up to 8000MT/s. MRDIMMs can only be installed 1x DIMM per Channel (1DPC) with CPUs supporting P-cores. The front of the node accommodates 2 FHHL single-width PCIe cards, offering a PCIe 5.0 x16 CPU-to-GPU interconnect, along with the option for an NVIDIA NVLink Bridge.
Compatible SuperBlade Enclosures:
SuperBlade Enclosure 610J-622
- 6 hot-plug 2200W Titanium (96% efficiency) PSUs + 2 cooling fans
SuperBlade Enclosure 610J-822
8 hot-plug 2200W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-422
- Up to 4 hot-swappable 2200W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-430
- Up to 4 hot-swappable 3000W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-630
- Up to 6 hot-swappable 3000W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-830
- Up to 8 hot-swappable 3000W Titanium (96% efficiency) PSUs
Using the expansion slots, up to 2x single-width full-height, full-length GPUs can be installed. The Supermicro 622B-5NE34 supports a total of 6x NVMe SSDs featuring 4x hot-swap E3.S PCIe Gen5 drive bays on the front of the chassis and 2x M.2 slots on the server board to boot the operating system. The M.2 slots are compatible with 2280 form factor cards through an adapter. For networking, the system includes dual onboard 25G ethernet ports and offers the option to add 2x additional 25GbE ports via a mezzanine expansion slot. You can deploy up to 35 servers in a 42U rack.
This server sled is supported by a Supermicro SuperBlade enclosure, which provides centralized power, cooling, networking, and management reducing cable clutter and the number of switches. 1x or 2x Chassis Management Modules (CMMs) are supported depending on the SuperBlade enclosure. CMMs are provided access to the supported server nodes via an integrated Aspeed AST2600 module and offer IPMI 2.0 and Redfish API compatibility along with KVM over IP.
*This system can only be sold as a completely assembled system and should include at least 1x CPU and 1x DIMM.
