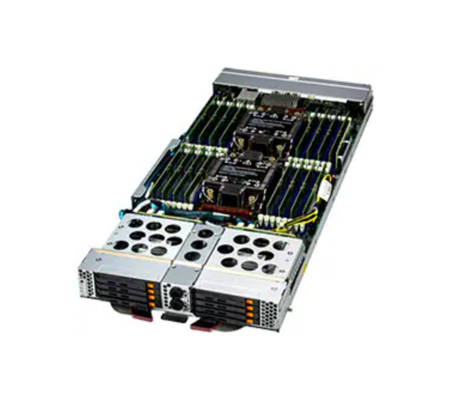

The Supermicro SuperBlade 622B-5NE38 can hold up to 10x NVMe SSDs. It has 8x hot-swap E3.S PCIe Gen5 drive bays on the front, plus 2x extra slots for M.2 2280 cards, which administrators can use with an optional adapter. The dual-socket node is powered by Intel Xeon 6 processors from the 6700 series with E-Cores, offering a TDP of up to 205W when air cooled at 35°C. This blade can also be configured with a direct liquid cooling solution.
Supermicro SuperBlade 622B-5NE38 - System Overview
Up to 32x DIMM slots can be populated with DDR5 RDIMMs or 3DS RDIMMs, reaching speeds of up to 6400 MT/s when configured with 1x DIMM per channel. It features dual onboard 25G Ethernet ports and can accommodate an additional dual-port 25G connection through a mezzanine expansion slot. Users can fit up to 35 of these servers in a standard 42U rack. The SuperBlade 622B-5NE38 does not support PCIe expansion slots.
Up to 4 hot-swappable 2200W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-430
Up to 4 hot-swappable 3000W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-630
Up to 6 hot-swappable 3000W Titanium (96% efficiency) PSUs
SuperBlade Enclosure 610J2-830
Up to 8 hot-swappable 3000W Titanium (96% efficiency) PSUs
The SuperBlade Enclosure provides the cooling, power, I/O, and management via a modular architecture. highly redundant, the enclosure offers single and dual management modules, and I/O modules for two separate fabrics. The system can easily scaleup to accommodate increased compute demands.
*A minimum of 1x CPU and 1x DIMM should be included in this system, which can only be delivered fully assembled.
Supermicro SuperBlade 622B-5NE38 - Specifications
Server Nodes/Enclosure
35 servers per 42U rack
Enclosure
SBE-610J/622
SBE-610J2/422/430/630/830
Processor - 2 Sockets
Intel Xeon 6 6700 series processors with E-Cores
Up to 205W TDP (air cooled)
Certain CPUs with higher TDP may be supported under specific conditions
Socket:
Dual Socket E2 (LGA-4710)
Motherboard
MBD-B14DBE
Memory
Memory Slots
32 x DDR5 DIMM slots
Maximum Memory
1DPC with DDR5-6400MT/s ECC RDIMM
Storage
Hot-Swap:
8x E3.S NVMe drive bays
M.2:
2x M.2 2280 NVMe SSDs via adapter (AOC-SMG4-2M2-F)
GPU
None
Expansion Slots
None
BIOS Type
64MB SPI Flash EEPROM with AMI® BIOS
On-Board Devices
Network Controllers:
Onboard Dual 25G Ethernet
Optional 2x 25GbE port via Mezzanine expansion slot (AOC-B25G-6X4D - Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN))
MGMT/Security:
IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
