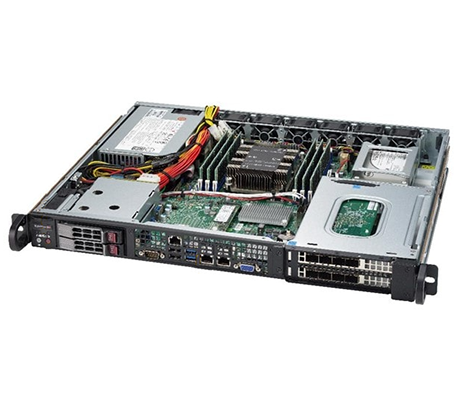

Compatible with a single 1st or 2nd Generation Intel Xeon Scalable processor, the Supermicro SuperServer 1019P-FHN2T is a 1U Rackmountable system designed for Edge applications. 6x DIMM slots available on the system board can provide a maximum memory capacity of up to 1.5TB. The front of the system houses 2x hot-swappable 2.5-inch SATA drive bays with an option for 2x internal 2.5-inch SSD drive bays. 2x PCIe 3.0 x16 expansion slots are accessible from the front of the server. This system has a single 500W 80 PLUS Platinum Power Supply.
Powered by a single 1st or 2nd Generation Intel Xeon Scalable processor, this system’s hardware configuration supports CPUs with a Thermal Design Point (TDP) between 70W and 205W. This TDP includes CPUs with up to 28x physical cores and 56x virtual threads.

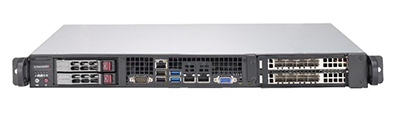

On the front of the Supermicro 1019P-FHN2T server are 2x 2.5-inch hot-swappable SATA drive bays. In addition, the system can be outfitted with 2x optional internal SSD drive bays for expanded storage capabilities. An optional M.2 PCIe 3.0 or M.2 SATA drive, can be installed on the server to support the system OS.
The compatible memory modules on this system are ECC DDR4 2933MHz Registered DIMMs (RDIMM) or Load Reduced DIMMs (LRDIMM). Other compatible memory speeds on this system include 2666MHz, 2400MHz, and 2133MHz depending on your choice of CPU, memory, and configuration. A maximum memory capacity of 1.5TB is achieved using 6x 256GB RDIMM or LRDIMM memory modules.
System expansion is achieved through 2x PCIe 3.0 x16 Full-Height, Full-Length slots which are accessible from the front of the server. These slots can house GPUs for improvement for computational acceleration and enhanced graphics support. Dual RJ45 10GbE LAN ports provided by Intel X722 and X557 are available to connect this system to the rest of your IT infrastructure.
Supermicro provides system management options right out of the box. Watch Dog and SuperDoctor 5 are proprietary software which grants access to remote management and at chassis management functionality. In addition, the Intel Node Manager, Intelligent Platform Management Interface (IPMI) 2.0, KVM with dedicated LAN, NMI, SPM, and SUM management solutions are available.
The Supermicro SuperServer 1019P-FHN2T is a single-socket system, compatible with 1st or 2nd Generation Intel Xeon Scalable processors, housed in 1U rack-mountable chassis. The maximum memory capacity on this server is 1.5TB using standard RDIMM/LRDDIMM modules. 2x 2.5-inch hot-swappable SATA drive bays on the front of this system with an option for 2x more provide storage support for a number of Edge and general business applications.
