Supermicro SuperServer 221P-C9RT

The 2U Supermicro SuperServer 221P-C9RT is ideal for virtualization, application and data serving, and compute intensive applications. Utilizing dual socket 4th or 5th generation Intel Xeon Scalable processor with up to 32 cores and a maximum TDP of up to 300W, it is capable of deploying up to 4TB of ECC Registered RDIMM memory with memory rates up to 5600MT/s. Lining the front of the chassis are 16x hot-swap 2.5" drive bays with 8x SAS drives and 8x SATA drive support, or 8x SATA with 4x SAS and 4x SAS/NVMe drives. Moreover, two optional 2.5-inch SAS/SATA drive bays are located on the back.
Configure

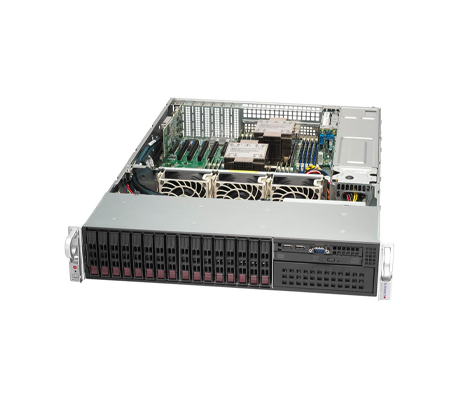

Supermicro SuperServer 221P-C9RT Front
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperServer 221P-C9RT - System Overview

Additional Information

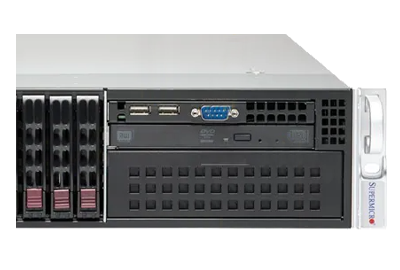

Supermicro SuperServer 221P-C9RT front drives

There are 2x PCIe 4.0 x2 M.2 slots under the hood that can accommodate 2280 and 22110 form factor cards. Administrators can benefit from 4x PCIe 5.0 x16, 1x PCIe 5.0 x8 low profile slot, and 2x 10GbE LAN ports, plus a dedicated 1GbE BMC LAN port for remote management of the system. There are 4x PCIe 5.0 x16 low profile and 1x PCIe 5.0 x8 low profile slots, plus 4x USB 3.0 ports and 2x SuperDOM ports.

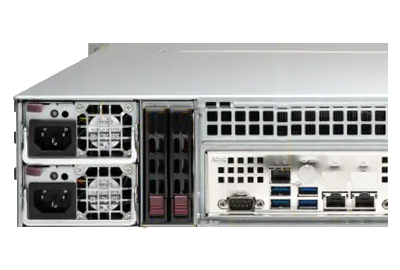

Supermicro SuperServer 221P-C9RT rear

To manage the system, software such as Supermicro SuperDoctor 5, Supermicro Server Manager, and SuperServer Automation Assistant (SAA) can be deployed both at-chassis and remotely. The system is powered by a 1200W Titanium level redundant power supply unit.

Supermicro SuperServer 221P-C9RT - Specifications

Processor - 2 Sockets

  • Dual Socket E (LGA-4677)
  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Up to 300W TDP (air cooled)
  • Super X13DEI-T

Memory

    Memory Capacity:

  • 16 x DIMM slots
  • Up to 4TB DDR5-5600MHz ECC Registered RDIMM

Drive Bays

    Default: Total 16 bay(s)

    Hot-Swap:

  • 4x front hot-swap 2.5" NVMe*/SAS drive bay(s)
  • 4x front hot-swap 2.5" SAS drive bay(s)
  • 8x front hot-swap 2.5" SATA* drive bay(s)
  • 2x 2.5" SATA rear optional
    • *NVMe/SAS support may require additional storage controller and/or cables

    M.2:

  • 2x M.2 NVMe PCIe 4.0 x2
  • M-Key, 2280/22110

    • Peripheral Bays:

  • 1 slim DVD bay(s) (optional)

Expansion Slots

  • 4 x PCIe 5.0 x16 LP slot(s)
  • 1 x PCIe 5.0 x8 LP slot(s)

Input / Output

    LAN:

  • 1x RJ45 1 GbE Dedicated BMC LAN port(s)

    • USB:

  • 2x USB 3.0 port(s) (front)
  • 4x USB 3.0 port(s) (rear)

    • Video:

  • 1 x VGA port(s)

    • DOM:

  • 2x SuperDOM (Disk on Module) port

On-Board Devices

    NVMe:

  • NVMe Gen4

    • Chipset:

  • Intel C741

    • Network Connectivity:

  • 2x RJ45 10GbE ports

Management

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

System BIOS

  • AMI 32MB SPI Flash EEPROM

System Cooling

    Fans:

  • 3x 8cm heavy duty fans with optimal fan speed control

Power Supply

  • 1x 1200W Redundant Titanium Level (96%) power supply

Chassis

    Form Factor

  • 2U

    • Dimensions (D x W x H)

  • 24.8" (630 mm) x 17.2" (437 mm) x 3.5" (89 mm)

    • Weight

  • Gross Weight: 63 lbs (28.8 kg)
  • Net Weight: 38 lbs (17.4 kg)
