Supermicro SuperServer 621P-TRT

Featuring dual socket 4th or 5th generation Intel Xeon Scalable processors with up to 300W TDP and 32 cores, the Supermicro SuperServer 621P-TRT can easily manage the demands of virtualization, application and data serving, plus compute intensive applications. This server has 16x DDR5 DIMM slots that can accommodate up to 4TB of ECC Registered RDIMM memory and speeds up to 5600MHz. The front of the chassis offers 8x hot-swap 3.5-inch SAS3/SATA3 drive bays, with an option to configure 4x of those drives with NVMe drives. In addition, there are 2x optional rear SAS/SATA 2.5-inch drive bays and 1x slim DVD drive bay on the front panel.
Configure

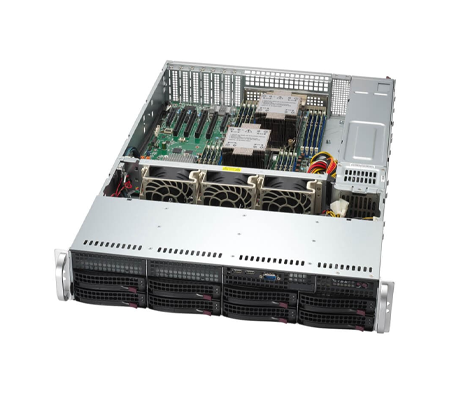

Supermicro SuperServer 621P-TRT Front
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperServer 621P-TRT - System Overview

Additional Information

Supermicro SuperServer 621P-TRT front

Under the hood, there are 2x M.2 PCIe 4.0 x2 slots with support for M-Key 2280 and 22110 form factor cards that can be used to boot the system. For high-performance solid-state storage that resembles an HDD, there are 2x SuperDOM ports. The SuperDom drives can also be used to boot the system in a mirrored RAID. The rear of the SuperServer 621P-TRT chassis allows administrators to access dual 10GbE LAN ports and 6x PCIe 5.0 slots. There are 4x PCIe 5.0 x16 low profile and 2x PCIe 5.0 x8 low profile slots offering a variety of expansion options such as networking, storage, and accelerators.

Supermicro SuperServer 621P-TRT rear

The system is powered by dual redundant 1200W Titanium level power supply units. There are several tools available for system management, including software like Supermicro Server Manager, Supermicro SuperDoctor 5, and SuperServer Automation Assistant (SAA). SuperDoctor 5 enables management of a single server while Supermicro’s Server Manager can help manage large groups or clusters of servers across the entire infrastructure.

Supermicro SuperServer 621P-TRT - Specifications

Processor - 2 Sockets

  • Dual Socket E (LGA-4677)
  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Up to 300W TDP (air cooled)
  • Super X13DEI-T

Memory

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Speed:

  • Up to 5600 MT/S

    • Maximum Memory Configuration:

  • 4TB: 16 x 256GB DDR5 RDIMM

Drive Bays

    Default: Total 8 bays

  • 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bay(s)
  • 4 front hot-swap 3.5" SAS*/SATA drive bay(s)
    • *NVMe/SAS support may require additional storage controller and/or cables

    M.2:

  • 2x M.2 NVMe PCIe 4.0 x2
  • M-Key, 2280/22110

    • Peripheral Bays:

  • 1 slim DVD bay(s) (optional)

Expansion Slots

  • 2x PCIe 5.0 x8 LP slot(s)
  • 2x PCIe 5.0 x16 LP slot(s)

Input / Output

    LAN:

  • 1x RJ45 1 GbE Dedicated BMC LAN port(s)

    • USB:

  • 2x USB 2.0 port(s) (front)
  • 4x USB 3.0 port(s) (rear)

    • Video:

  • 1 x VGA port(s)

    • Serial:

  • 1 x COM port(s)(Rear)
  • 1 x COM port(s)(Front)

    • DOM:

  • 2x SuperDOM (Disk on Module) port

    • TPM:

  • 1 x TPM Onboard/port 80 (TPM 2.0)

On-Board Devices

    SATA:

  • SATA (6Gbps)

    • Chipset:

  • Intel C741

    • Network Connectivity:

  • 2x RJ45 10GbE ports

    • NVMe

  • NVMe Gen4

Management

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

System BIOS

  • AMI 32MB SPI Flash EEPROM

System Cooling

    Fans:

  • 3x middle 8cm fans

Power Supply

  • 1x 1200W Redundant Titanium Level (96%) power supply

Chassis

    Enclosure

    Height: 3.5" (89 mm)

    Width: 17.2" (437 mm)

    Depth: 25.5" (647 mm)

    Weight

  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)

Supermicro SuperServer 621P-TRT - Documentation

Supermicro SuperServer 621P-TRT Data Sheet Supermicro SuperServer 621P-TRT User Manual Supermicro SuperServer 621P-TRT Quick Reference Guide
