Supermicro Hyper A+ Server 2115HS-TNR

With 24x 2.5-inch SAS/SATA/NVMe bays up front, the Supermicro Hyper A+ Server 2115HS-TNR can support a variety of workloads including virtualization, software-defined storage, cloud computing, plus AI inference and Machine Learning. The single 4th generation AMD EPYC 9004 series processor can deliver up to 128 physical cores and 256 virtual threads. At full capacity, the system will support up to 6TB of DDR5 memory.
Configure

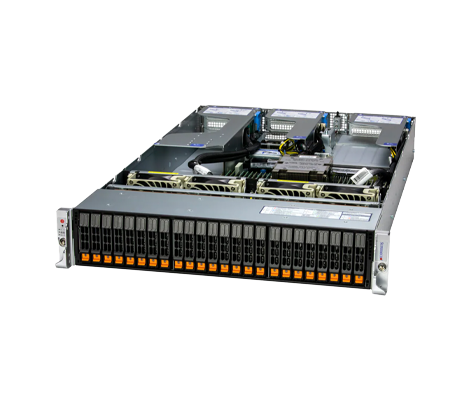

Supermicro Hyper A+ Server 2115HS-TNR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Hyper A+ Server 2115HS-TNR - System Overview

Supermicro Hyper A+ Server 2115HS-TNR front of system

Part of Supermicro’s A+ servers, the Supermicro Hyper A+ Server 2115HS-TNR supports a single AMD EPYC 9004 series CPU and is also compatible with AMD’s 3D V-Cache technology for up to 4.5 times the L3 cache. With up to 24x NVMe storage devices installed, the system will only support a single PCIe 5.0 x16 slot or 2x PCIe 5.0 x8 slots. Other combinations of PCIe slots are available depending on the workload. There is also a single Advanced I/O Module (AIOM) slot compliant with OCP NIC 3.0 PCIe 5.0 x16 that can be used for optional network communications. The system is powered by dual 1600W redundant Titanium level power supplies but an optional configuration supports 1300W DC Power supply with full redundancy based on configuration and application load.

PCIe Expansion Options Based on Storage Configuration

24x Bay SATA/SAS and 16 SATA/SAS Configuration Options
  • 4 PCIe 5.0 x16 Slots or
  • 8 PCIe 5.0 x8 Slots or
  • 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
  • 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
  • 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
    • 24x Bay NVME Configuration Options
  • 1 PCIe 5.0 x16 Slots OR 2 PCIe 5.0 x8 Slots
    • 20 Bay NVME Configuration Options
  • 2 PCIe 5.0 x16 Slots OR 4 PCIe 5.0 x8 Slots

*This system is only sold as a completely assembled unit with 1x CPU, a minimum of 2x DIMMs, 1x AIOM/AOC NIC, and 1x storage device. Supermicro Hyper A+ Server 2115HS-TNR rear of system

Available Configurations

Explore available configurations for the Supermicro Hyper A+ Server 2115HS-TNR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro Hyper A+ Server 2115HS-TNR - Specifications

Processor - 1 Socket

  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processor (the latest AMD EPYC™ 9004 Series Processor with AMD 3D V-Cache™ Technology)
  • Up to 128 cores/256 threads
  • Support CPU TDP 360W

Memory

    Maximum Memory:

  • Up to 3TB: DDR5-4800MHz (12 DIMM slots, 1DPC)
  • Up to 6TB: DDR5-4000MHz/ 3600MHz (24 DIMM slots, 2DPC)

    • Memory Slots:

  • 24 x DIMM slots

    • Memory Type:

  • 4800MHz(1DPC) or 4000/3600(2DPC)MHz ECC DDR5 RDIMM

Drive Bays

    Hot-swap:

  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays

    • M.2:

  • 2x NVMe (1x PCIe 3.0x4, 1x PCIe 3.0x2, Boot drive only)
  • M-Key, 22110 (Default)/2280

On-Board Devices

    Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

    LAN:

  • 1x Dedicated IPMI LAN port

    • USB:

  • 2x USB 3.0 ports (2 rear)

    • Video:

  • 1x VGA port(s)

System BIOS

  • AMI 256MB SPI Flash

Management

  • KVM with dedicated LAN
  • IPMI 2.0
  • Super Diagnostics Offline
  • SSM, SUM
  • SuperDoctor® 5
  • Redfish API

Front Panel

    Buttons:

  • Power On/Off button
  • UID button

    • LEDs:

  • HDD activity LED
  • LAN1 activity LEDs
  • Power status LED
  • System Information LED

Expansion Slots

    PCIe Expansion Options Based on Storage Configuration 24x Bay SATA/SAS and 16 SATA/SAS Configuration Options
  • 4 PCIe 5.0 x16 Slots or
  • 8 PCIe 5.0 x8 Slots or
  • 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
  • 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
  • 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
    • 24x Bay NVME Configuration Options
  • 1 PCIe 5.0 x16 Slots OR 2 PCIe 5.0 x8 Slots
    • 20 Bay NVME Configuration Options
  • 2 PCIe 5.0 x16 Slots OR 4 PCIe 5.0 x8 Slots

Power Supply

  • 1600W Redundant Titanium level Power Supplies

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 29.9" (760mm) x 17.2" (437mm) x 3.5" (88.9mm)

    • Weight

  • Gross Weight: 72 lbs (32.7 kg)
  • Net Weight: 39 lbs (17.7 kg)
