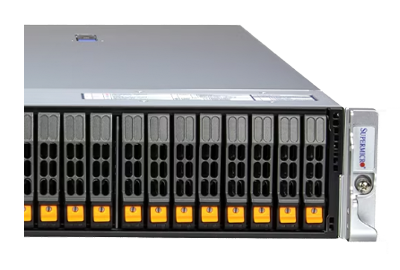

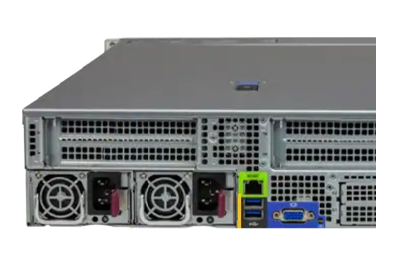

Supermicro Hyper A+ Server 2115HS-TNR

Part of Supermicro’s A+ servers, the Supermicro Hyper A+ Server 2115HS-TNR supports a single AMD EPYC 9004 series CPU and is also compatible with AMD’s 3D V-Cache technology for up to 4.5 times the L3 cache. With up to 24x NVMe storage devices installed, the system will only support a single PCIe 5.0 x16 slot or 2x PCIe 5.0 x8 slots. Other combinations of PCIe slots are available depending on the workload. There is also a single Advanced I/O Module (AIOM) slot compliant with OCP NIC 3.0 PCIe 5.0 x16 that can be used for optional network communications. The system is powered by dual 1600W redundant Titanium level power supplies but an optional configuration supports 1300W DC Power supply with full redundancy based on configuration and application load.

PCIe Expansion Options Based on Storage Configuration

• 4 PCIe 5.0 x16 Slots or
• 8 PCIe 5.0 x8 Slots or
• 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
• 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
• 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
24x Bay NVME Configuration Options
• 1 PCIe 5.0 x16 Slots OR 2 PCIe 5.0 x8 Slots
20 Bay NVME Configuration Options
• 2 PCIe 5.0 x16 Slots OR 4 PCIe 5.0 x8 Slots

*This system is only sold as a completely assembled unit with 1x CPU, a minimum of 2x DIMMs, 1x AIOM/AOC NIC, and 1x storage device.
