Supermicro Hyper A+ 2125HS-TNR

With support for up to 6TB of DDR5 memory in 24x DIMM slots, this platform is designed for virtualization, AI Inference and Machine Learning, plus software-defined storage, and use as an enterprise server. The Supermicro Hyper A+ Server 2125HS-TNR supports dual 4th generation AMD EPYC 9004 series CPUs with 24x storage bays up front compatible with SAS, SATA or NVMe storage options. SATA/SAS drives require an additional storage controller. Gen 5.0 PCIe slots are variable depending on the workload with several options for x8 and x16 slots. NVMe drives will limit the number of supported PCIe slots.
Configure

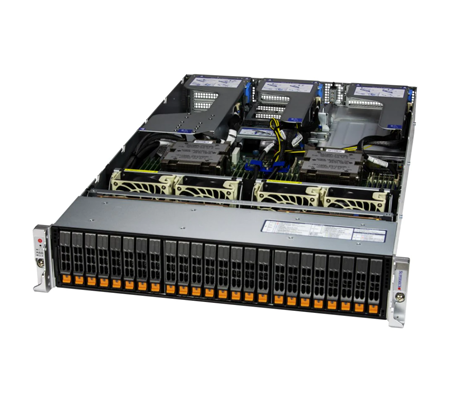

Supermicro Hyper A+ 2125HS-TNR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Hyper A+ 2125HS-TNR - System Overview

A thermal design power (TDP) limit of 360W enables AMD EPYC 9004 series CPUs with up to 96 cores each for a total of 192 cores with both processors installed. In addition to 24x storage bays, there are 2x onboard PCIe 3.0 x4 slots suitable for 80mm/110mm NVMe m.2 drives that can be used to boot the Supermicro 2125HS-TNR server in a mirror RAID for redundancy. A single advanced I/O module (AIOM) or OCP 3.0 card can be installed in the dedicated mezzanine PCIe Gen5 x16 card slot. 4x hot-plug redundant 2400W AC PSUs power the system.



* This platform is only sold as a completely assembled system with 2x CPUs, a minimum of 4x DIMMs, 1x AIOM/AOC network interface controller, and 1x storage device.

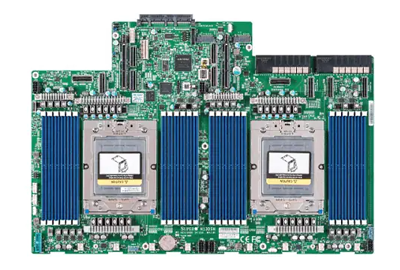

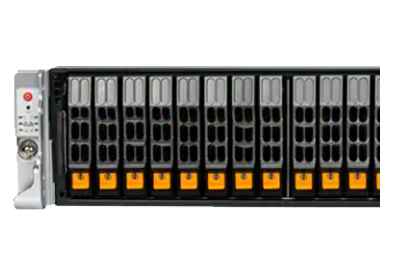

Supermicro Hyper A+ 2125HS-TNR server front drive bays Supermicro Hyper A+ 2125HS-TNR server motherboard ports

Request A Quote

Available Configurations

Explore available configurations for the Supermicro Hyper A+ 2125HS-TNR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro Hyper A+ 2125HS-TNR - Specifications

Processor - 2 Socket

  • Up to two 4th Generation AMD EPYC 9004 Series CPUs
  • Dual Socket SP5
  • Support CPU TDP up to 360W
  • Up to 192C/384T

Memory

  • 24x DIMM slots
  • Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
  • Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory
  • Memory Voltage: 1.1V
  • Error Detection: Corrects single-bit errors/detects double-bit errors (w/ ECC)
    • *NOTE: For optimal performance AMD recommends full memory population

Drive Bays

  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays
  • M.2: 2x NVMe (PCIe 3.0 x4, Boot drive only) M-Key, 2280/22110

Expansion Slots

    For 24x SATA/SAS Configuration Options for up to:

  • Four PCIe 5.0 x16 slots or
  • Eight PCIe 5.0 x8 slots or
  • Three PCIe 5.0 x16 slots + two PCIe 5.0 x8 slots or
  • Two PCIe 5.0 x16 slots + four PCIe 5.0 x8 slots or
  • One PCIe 5.0 x16 slot + six PCIe 5.0 x8 slots

    • For 24x NVME Configuration Options for up to:

  • One PCIe 5.0 x16 slot or two PCIe 5.0 x8 slots

Chipset

    System on Chip

On-Board Devices

    IPMI

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • Network

  • Via AIOM

Input/Output

    LAN

  • 1x Dedicated IPMI LAN port

    • USB

  • 2x USB 3.0 ports (2 rear)

    • Video

  • 1x VGA port

System BIOS

    BIOS Type

  • AMI 256MB SPI Flash

    • BIOS Features

  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support

Front Panel

    Buttons

  • Power On/Off button
  • UID Button

    • LEDs

  • HDD Activity LED
  • Power Status LED
  • LAN1 activity LED
  • System Info

Power Supply

  • 1600W 1U redundant power supply

Chassis

    Enclosure
    Height: 3.5" (89mm)
    Width: 17.2" (437mm)
    Depth: 29.9" (760mm)
    Gross Weight: 72 lbs (32.7 kg)
    Net Weight: 39 lbs (17.7 kg)
