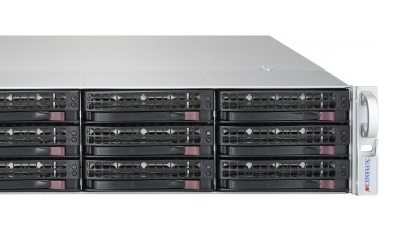

Outfitted with a single Intel Xeon Scalable processor from the first- or second-generation family with up to 28 cores, the Supermicro SuperStorage 5029P-E1CTR12L offers a compact 25.6” chassis. The 2U enclosure supports up to 2TB of DDR4 RDIMMs or LRDIMMs within 8x memory module slots and speeds of up to 2933MHz. It also supports Intel Optane DCPMMs. On the front of the server, there are 12x hot-swap 3.5” SAS/SATA drive bays with SES3, meanwhile the rear can carry 2x optional hot-swap 2.5” NVMe/SATA drive bays. SAS3 drives deliver 12Gbps via a Broadcom 3008 controller, and SATA3 drives offer 6Gb/s via a C622 controller.

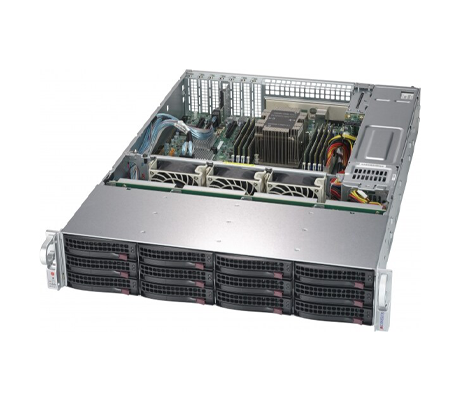

Supermicro SuperStorage 5029P-E1CTR12L Server - System Overview
Designed to be cost-effective, the Supermicro 5029P-E1CTR12L can be used for application and data serving, connectivity/storage compute nodes, and as a high availability storage appliance platform. This system can accommodate up to 4x PCIe cards with different sizes such as 1x PCIe 3.0 x16, 2x PCIe 3.0 x8, and 1x PCIe 2.0 x4 (in x8). The server also supports 1x M.2 slot with PCIe 3.0 x4 and SATA interfaces for 2280 form factor cards. On the back of the chassis, there are dual 800W Titanium level redundant power supplies. To manage the system, Supermicro’s SuperDoctor 5 monitors the hardware health or availability of the target node systems in data centers real-time and provides alerts to administrators.
Supermicro SuperStorage 5029P-E1CTR12L Server - Specifications
Processor - 1 Socket
Single Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Support CPU TDP 70-205W
Up to 28 cores
Memory
Maximum Memory:
Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Slots:
8 x DIMM slots
Supports Intel Optane DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Drive Bays
Hot-swap:
12x Hot-swap 3.5" SAS/SATA drive bays with SES3
2x Hot-swap 2.5" NVMe/SATA drive bays (rear)
M.2:
1x M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280
Double Height Connector
On-board Devices
Chipset:
Intel C622
SATA:
SATA3 (6Gbps) via C622 controller
RAID 0, 1, 5, 10 support
SAS:
SAS3 (12Gbps) via Broadcom 3008
SW RAID 0, 1, 10
Network Controllers:
Dual LAN with 10GBase-T with Intel® X722 + X557
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
Input/Output
SATA:
10x SATA3 (6Gbps) ports
LAN:
2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
5x USB 3.0 ports (2 rear + 2 headers + 1 Type A)
8x USB 2.0 ports (2 rear + 6 headers)
VGA:
1x VGA Port
Serial Port:
2x COM port (1 rear, 1 header)
System BIOS
AMI UEFI
Management
Intel Node Manager
IPMI 2.0, KVM with dedicated LAN
Supermicro Update Manager (SUM)
Supermicro Server Manager (SSM)
SuperDoctor® 5
Redfish API
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
HDD Fail LED
Network activity LEDs
Power Fail LED
Power Status LED
System Information LED
Expansion Slots
1x PCI-E 3.0 x16
1x PCI-E 3.0 x8
1x PCI-E 3.0 x8
1x PCI-E 2.0 x4 (in x8)
Power Supply
800W Redundant Power Supplies with PMBus
Chassis
Form Factor
2U Rackmount
Dimensions (D x W x H)
25.6" (648mm) x 17.2" (437mm) x 3.5" (89mm)
Weight
Gross Weight: 58 lbs (26.3 kg)
Net Weight: 34 lbs (15.4 kg)
