Supermicro SuperStorage 6019P-ACR12L

Featuring a 1U form factor, the Supermicro SuperStorage 6019P-ACR12L offers up to 12x top-loading, hot-swap 3.5" SAS3/SATA3 drive bays and 4x hot-swap 2.5” 7mm NVMe/SATA drive bays on the front panel. They connect to the system using three compact, horizontal backplanes, each of which can hold 4x 3.5" HDDs. The motherboard also delivers 1x PCIe 3.0 x4 M.2 slot for SSD cards in the 2280 and 22110 form factors. Compatible with Intel Optane DCPMMs, it can accommodate up to 3TB of memory in 12x memory module slots when dual 2nd Gen Intel Xeon Scalable CPUs are installed. 1st gen Intel Xeon scalable CPUs are also supported. A maximum TDP of up to 205W per CPU is supported.
Configure

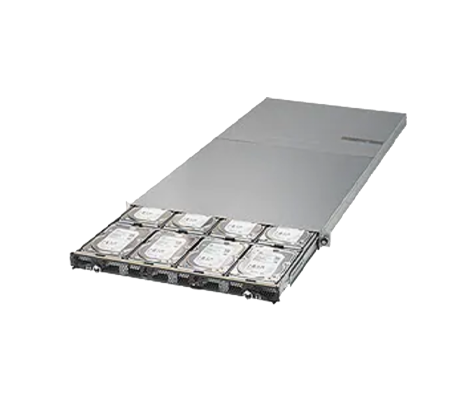

Supermicro SuperStorage 6019P-ACR12L side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperStorage 6019P-ACR12L - System Overview

Supermicro SuperStorage 6019P-ACR12L front of system

A total of 4x PCIe expansion slots are available on the Supermicro 6019P-ACR12L for additional network interface controllers (NICs). 2x PCIe 3.0 x16 slots, 1x PCIe 3.0 x8 LP slot, and 1x PCIe 3.0 x4 NVMe M.2 slot is supported. On the back of the chassis, there are two redundant 600W Platinum level power supplies that can be changed out, if necessary, even when the system is running. Designed for high density storage, Ceph/Hadoop, and big data analytics, this system can be managed both at-chassis and remotely with one of many Supermicro management programs. CPU temperature, voltages, power consumption, and fan speed may all be monitored using SuperDoctor5, a web-based interface for Windows and Linux operating systems.

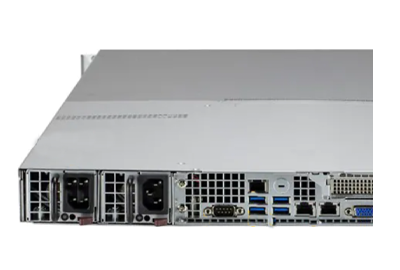

*2nd Gen Intel Xeon Scalable CPUs require BIOS Version 3.2 or higher. Supermicro SuperStorage 6019P-ACR12L rear of system

Supermicro SuperStorage 6019P-ACR12L - Specifications

Processor - 2 Sockets

  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual UPI up to 10.4GT/s
  • Up to 28 cores
  • Support CPU TDP up to 205W

Memory

    Maximum Memory:

  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM

    • Memory Slots:

  • 12 x DIMM slots

    • Memory Type:

  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Drive Bays

    Hot-swap:

  • 12x Hot-swap 3.5" SAS3/SATA3 drive bays
  • 4x Hot-swap 2.5" 7mm NVMe/SATA drive bays

On-Board Devices

    Chipset:

  • Intel C622 chipset

    • SATA:

  • SATA3 (6Gbps); RAID 0, 1, 5, 10

    • SAS:

  • Broadcom 3224 SAS3 IT mode controller

    • Network Controllers:

  • Dual LAN with 10GBase-T from Intel C622

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • Video:

  • ASPEED AST2500 BMC

Input/Output

    LAN:

  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2x USB 2.0 port(s) (2x Front_USB)
  • 4x USB 3.0 port(s) (4x Rear_USB)

    • VGA:

  • 1x VGA port(s)

    • Serial Port:

  • 1x Serial

System BIOS

  • UEFI 256Mb

Management

  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SuperDoctor® 5
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • Watchdog

Front Panel

    Buttons:

  • Power On/Off button
  • System Reset button

    • LEDs:

  • HDD activity LED
  • Network activity LEDs
  • Power status LED

Expansion Slots

  • 2x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x8 LP slot
  • 1x PCI-E 3.0 x4 NVMe M.2 slot

Power Supply

  • 600W Redundant Platinum Level power supplies

Chassis

    Form Factor

  • 1U Rackmount

    • Dimensions (D x W x H)

  • 37.40" (950mm) x 17.6" (447mm) x 1.7" (43mm)

    • Weight

  • Gross Weight: 80 lbs (36.3 kg)
  • Net Weight: 65 lbs (29.5 kg)

Supermicro SuperStorage 6019P-ACR12L - Documentation

Supermicro SuperStorage 6019P-ACR12L Data Sheet Supermicro SuperStorage 6019P-ACR12L User Manual
