Supermicro SuperStorage 6049P-E1CR24L

The Supermicro SuperStorage 6049P-E1CR24L is a dual socket server compatible with 1st or 2nd generation Intel Xeon Scalable processors with up to 28 cores and a TDP between 70W and 205W. When all 16x DIMM slots are populated, the system supports up to 4TB of DDR4 RDIMMs and LRDIMMs with maximum speeds of up to 2933MHz. In addition to standard memory modules, the system supports Intel Optane DCPMMs. The front panel houses 24x hot-swap 3.5” SAS3/SATA3 drive bays and the rear holds 2x optional 2.5” SATA3 hot-swap drives.
Configure

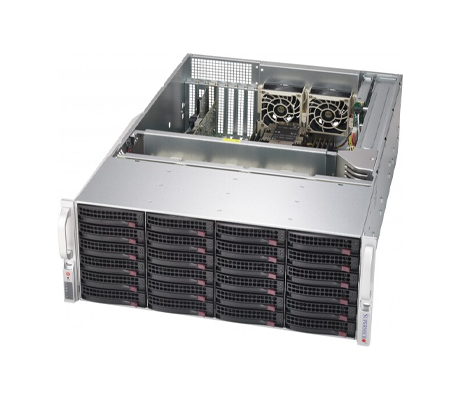

Supermicro SuperStorage 6049P-E1CR24L side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperStorage 6049P-E1CR24L - System Overview

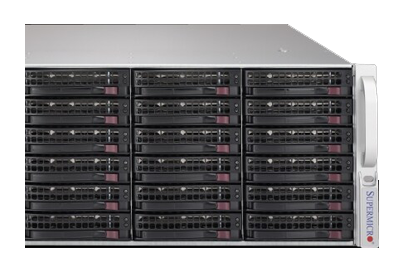

Supermicro SuperStorage 6049P-E1CR24L front of system

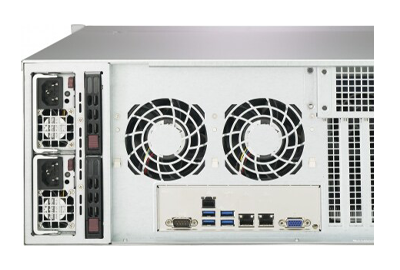

Under the hood, the system supports 2x NVMe M.2 slots. A Broadcom 3008 add-on card controls the SAS drives. The Intel-based Supermicro 6049P-E1CR24L is a 4U system with 3x PCIe 3.0 x16 slots and 4x PCIe 3.0 x8 slots. PCIe lots 2 and 3 are occupied by an HD controller in one and JBOD expansion port in the other, repectively. Dual 10GBase-T LAN ports with Intel X722 provide an integrated network connection. The dedicated PHY Intel X557 RJ45 port can be used with management options like IPMI 2.0, Watchdog, and SuperDoctor 5 for at chassis and remote management of the system. This server is powered by 1200W Titanium level redundant power supplies and supports 3x hot-swap 8cm redundant cooling fans plus 2x hot-swap 8cm rear exhaust fans. Supermicro SuperStorage 6049P-E1CR24L rear of system

Supermicro SuperStorage 6049P-E1CR24L - Specifications

Processor - 2 Sockets

  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Up to 28 cores
  • 3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W

Memory

    Maximum Memory:

  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM

    • Memory Slots:

  • 16 x DIMM slots

    • Memory Type:

  • 2933/2666/2400/2133MHz ECC DDR4

Drive Bays

    Hot-swap:

  • 24x Hot-swap 3.5" SAS3/SATA3 drive bays
  • 2x Hot-swap 2.5" SAS2/SATA2 drive bays with optional parts

    • M.2:

  • 2x Onboard NVMe M.2
  • 2242/2260/2280/22110

On-board Devices

    Chipset:

  • Intel® C622 chipset

    • SAS:

  • SAS3 (12Gbps) via Broadcom 3008 AOC

    • SATA:

  • SATA3 (6Gbps) with RAID 0, 1, 5, 10

    • Network Controllers:

  • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • Graphics:

  • ASPEED AST2500 BMC

Input/Output

    LAN:

  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port

    • USB:

  • 4x USB 3.0 ports (rear)
  • 1x Type A

    • VGA:

  • 1x VGA port

    • Serial Port/Header:

  • 1x Fast UART 16550 port / 1x Header

System BIOS

  • 256MB AMI UEFI

Management

  • Intel Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SUM
  • SuperDoctor® 5
  • Watchdog

Front Panel

    Buttons:

  • Power On/Off button
  • System Reset button

    • LEDs:

  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • System Information LED
  • Power fail LED

Expansion Slots

  • 3x PCI-E 3.0 x16 slot
  • 4x PCI-E 3.0 x8 slot
  • Slot 2 & 3 occupied by SAS3 controller and JBOD Expansion Port

Power Supply

  • 1200W Redundant Titanium level Power Supplies

Chassis

    Form Factor

  • 4U Rackmount

    • Dimensions (D x W x H)

  • 26.5" (673mm) x 17.2" (437mm) x 7" (178mm)

    • Weight

  • Gross Weight: 92 lbs (41.7 kg)
  • Net Weight: 55 lbs (24.9 kg)

Supermicro SuperStorage 6049P-E1CR24L - Documentation

Supermicro SuperStorage 6049P-E1CR24L Data Sheet Supermicro SuperStorage 6049P-E1CR24L User Manual
