Supermicro SuperStorage 6049SP-DE2CR60

The 60-bay Supermicro SuperStorage 6049SP-DE2CR60 is a top-loading system for high-capacity cloud-scale deployments. Two hot-pluggable nodes each support dual-sockets, DDR4 and DCPMM memory modules, with shared storage options. The nodes can be outfitted with 2x first- or second-generation Intel Xeon Scalable processors with up to 28 cores and a TDP ranging from 70W to 205W. 16x memory module slots support up to 4TB of memory with speeds of up to 2933MHz. Using Intel Optane DCMPPs each node can support up to 5TB of RAM, but only when 2nd Gen Intel Xeon Scalable CPUs are installed.
Configure

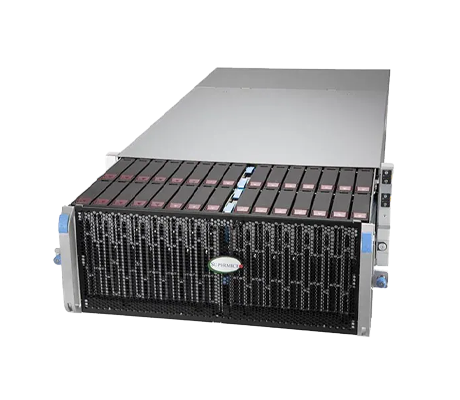

Supermicro SuperStorage 6049SP-DE2CR60 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperStorage 6049SP-DE2CR60 - System Overview

Supermicro SuperStorage 6049SP-DE2CR60 rear of system

With dual nodes, the server is ideal for government data protection, Telco & Cloud service providers, high-performance computing, artificial intelligence, and more. Aside from 60x 3.5" hot-swap SAS3/SATA3 drive bays shared between the nodes, the top-loading Supermicro 6049SP-DE2CR60 offers 2x NVMe M.2 slots for 2280 and 22110 form factor cards and 2x internal 2.5-inch fixed slim SATA SSDs. Additionally, the 4U machine's top can be used for servicing SAS3 dual expanders. The Super X11DSC motherboard can be found on each of the nodes supporting 2x PCIe 3.0 x16 half-height, half-length slots and 1x PCIe 3.0 x8 half-height, half-length slot. Administrators can deploy software like Intel Node Manager, IPMI 2.0, SuperDoctor5, and Watchdog to manage the system both at-chassis and remotely. Powering the chassis are dual redundant 2600W Titanium level (96%) power supplies. 6x 8cm hot-swap counter-rotate redundant PWM fans provide essential air cooling.

*This product is only offered as a fully assembled system that includes a minimum of 4x CPUs, 4x DIMMs, 15x hard drives, and a SAS controller kit. Supermicro SuperStorage 6049SP-DE2CR60 side node

Supermicro SuperStorage 6049SP-DE2CR60 - Specifications

Processor - 2 Sockets (per node)

  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Up to 28 cores
  • 3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W

Memory (per node)

    Maximum Memory:

  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM

    • Memory Slots:

  • 16 x DIMM slots

    • Memory Type:

  • 2933/2666/2400/2133MHz ECC DDR4

Drive Bays

    Hot-swap:

  • 60x 3.5"/2.5" Hot-swap SAS3

    • Fixed:

  • 2x 2.5" internal fixed slim SATA SSD

    • M.2:

  • 2x NVMe M.2 (form factor: 2280 and 22110)

On-board Devices (per node)

    Chipset:

  • Intel® C621 chipset

    • Storage:

  • Dual Broadcom 3616 IT Mode

    • Network Controllers:

  • Dual 10GBase-T LAN ports via Intel X550

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • Graphics:

  • ASPEED AST2500 BMC

Input/Output (per node)

    LAN:

  • 2x RJ45 10GBase-T LAN ports
  • 1x Dedicated IPMI LAN port

    • USB:

  • 2x USB 3.0 ports (rear)
  • 1x Type A

    • VGA:

  • 1x VGA D-Sub connector port

    • Serial Port/Header:

  • 1x Fast UART 16550 port / 1x Header

System BIOS

  • AMI UEFI

Management

  • Intel Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watchdog

Front Panel

    Buttons:

  • Power On/Off button
  • System Reset button

    • LEDs:

  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • System Information LED
  • Power fail LED

Expansion Slots (per node)

  • 2x PCI-E 3.0 x16 (HHHL) slots
  • 1x PCI-E 3.0 x8 (HHHL) slot

Power Supply

  • 2600W Redundant Titanium level Power Supplies

Chassis

    Form Factor

  • 4U Rackmount

    • Dimensions (D x W x H)

  • 34.1" (866mm) x 17.68" (449mm) x 6.96" (177mm)

    • Weight

  • Gross Weight: 170.5 lbs (77.3kg)
  • Net Weight: 118 lbs (53.5 kg)

Supermicro SuperStorage 6049SP-DE2CR60 - Documentation

Supermicro SuperStorage 6049SP-DE2CR60 Data Sheet Supermicro SuperStorage 6049SP-DE2CR60 User Manual
