Supermicro SuperStorage 6049SP-DE2CR90 Server

The Supermicro SuperStorage 6049SP-DE2CR90 is a 4U platform with 90x SFF or LFF SAS/SATA top-loading drive bays and a dual Broadcom 3616 storage controller in IT Mode for high-capacity storage. The system supports dual sockets in dual nodes for 1st and 2nd generation Intel Xeon Scalable processors with up to 28 cores each and a maximum TDP of up to 70W-205W. These CPUs support up to 4TB of RAM when all 16x DIMM slots are filled, plus up to 5TB of memory using Intel Optane DC Persistent memory (DCPMM).
Configure

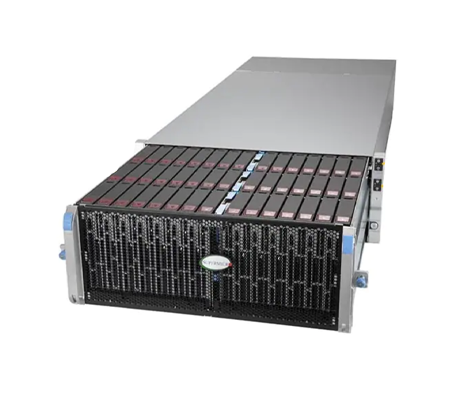

Supermicro SuperStorage 6049SP-DE2CR90 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperStorage 6049SP-DE2CR90 Server - System Overview

Supermicro 6049SP-DE2CR90 front of system

The 90-bay, top-loading Supermicro 6049SP-DE2CR90 system is good for content repositories, healthcare image archives, government data protection, and more. Aside from the drive bays, the system offers other storage options including 2x NVMe M.2 slots for 2280 and 22110 form factor cards and 2x 2.5” internal fixed slim SATA SSDs. The Super X11DSC motherboard, found on each of the two high-availability nodes, supports 2x PCIe 3.0 x16 half-height, half-length slots and 1x PCIe 3.0 x8 half-height, half-length slot.


Software like Intel Node Manager, IPMI 2.0, SuperDoctor5, and Watchdog can be installed to manage the system locally or remotely. The chassis is powered by a 2600W redundant Titanium level (96%) power supply, and it is kept cool by 6x 8cm hot-swappable redundant PWM fans.

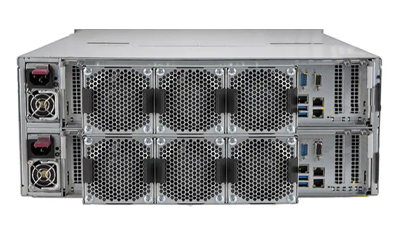

Supermicro 6049SP-DE2CR90 rear of system

Supermicro SuperStorage 6049SP-DE2CR90 Server - Specifications

Processor - 2 Sockets (Per Node)

  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Up to 28 cores
  • Support CPU TDP 70-205W

Memory (Per Node)

    Maximum Memory:

  • Up to 4TB: 3DS ECC DDR4-2933MHz RDIMM/LRDIMM

    • Memory Slots:

  • 16 x DIMM slots
  • Supports Intel Optane DCPMM

    • Memory Type:

  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Drive Bays

    Hot-swap:

  • 90x 3.5"/2.5" Hot-swap SAS3

    • Fixed:

  • 2x 2.5" internal fixed slim SATA SSD

    • M.2:

  • 2x M.2 NVMe
  • M-Key, 2280 and 22110

On-board Devices (Per Node)

    Chipset:

  • Intel C621 Chipset

    • Storage:

  • Dual Broadcom 3616 IT Mode

    • Network Controllers:

  • Dual 10GBase-T LAN ports via Intel X550

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • Graphics:

  • ASPEED AST2500 BMC

Input/Output (Per Node)

    LAN:

  • 2 RJ45 10GBase-T LAN ports
  • 1 Dedicated IPMI LAN port

    • Video:

  • 1x VGA D-Sub Connector Port

    • USB:

  • 2 USB 3.0 ports (rear)
  • 1 Type A

    • Serial Port/Header:

  • 1 Fast UART 16550 port / 1 Header

Management

  • Intel Node Manager
  • IPMI 2.0
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • NMI
  • SuperDoctor® 5
  • Watchdog

Front Panel

    Buttons:

  • Power On/Off button
  • UID button

    • LEDs:

  • Network Activity LED
  • HDD Activity LED
  • LAN1 Activity LED
  • Power Status LED
  • System Information LED
  • Power Fail LED

Expansion Slots (Per Node)

  • 2x PCI-E 3.0 x16 (HHHL) slots
  • 1x PCI-E 3.0 x8 (HHHL) slot

Power Supply

  • 2600W Redundant Titanium Level power supplies

Chassis

    Form Factor

  • 4U Rackmount

    • Dimensions (D x W x H)

  • 42.9" (1091mm) x 17.68" (449mm) x 6.96" (177mm)

    • Weight

  • Gross Weight: 240 lbs (108.86 kg)
  • Net Weight: 150 lbs (68.04 kg)

Supermicro SuperStorage 6049SP-DE2CR90 Server - Documentation

Supermicro SuperStorage 6049SP-DE2CR90 Datasheet Supermicro SuperStorage 6049SP-DE2CR90 User Manual
