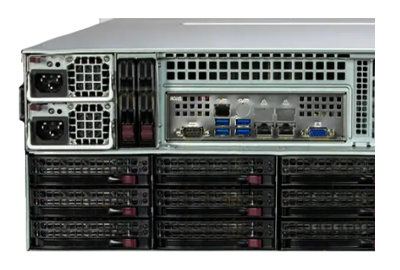

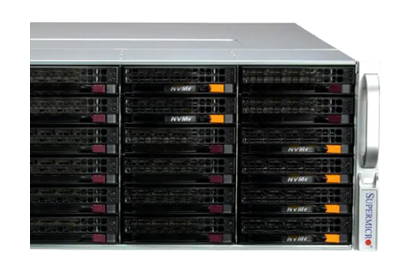

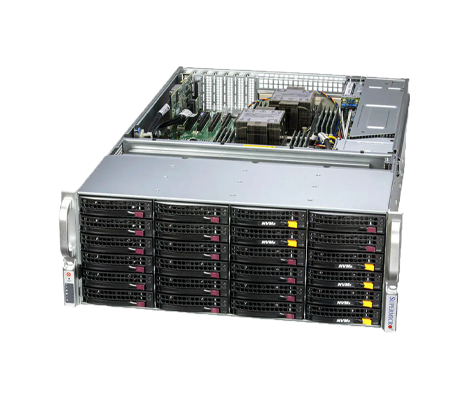

The Supermicro SuperStorage 641E-E1CR36H features 24x 3.5-inch bays on the front, with 12x more on the back of the chassis plus 2x 2.5-inch drive bays. There is an option enabling support for up to 6x PCIe 5.0 NVMe drive bays, which may require additional hardware. At capacity, the system can support up to 4TB of memory using DDR5 Registered DIMM (RDIMM) memory modules in all 16x DIMM slots. Depending on the choice of processor and memory module, memory can run at up to 5600MT/s. As an air-cooled system, CPUs are limited to a Thermal Design Power threshold of 270W.
Expansion is through 4x PCIe 5.0 x16 slots, plus 2x PCIe 5.0 x8 slots, all are low profile. If installing SAS drives, a SAS controller card is required. Hardware RAID support is via a Broadcom 3908 controller. Virtual RAID on CPU (VROC) is also supported for RAID using NVMe SSDs. Powering the system are dual, redundant 1600W Titanium-level hot-plug power supply units (PSUs). The system features 2x integrated 10GbE RJ45 ports and a dedicated 1GbE baseboard management controller (BMC) LAN port. Additional networking options are available including 1Gb/s to 100Gb/s using add-on-cards (AOC).
Supermicro also provides several software utilities to help manage the system including SuperCloud Composer, Supermicro Server Manager (SSM), the Supermicro Update Manager (SUM), and a few others. This system can be used to support a number of workloads including high-performance computing in the data center, use as a corporate database, iSCSI storage area network, and use as an enterprise server.
Compose the exact configuration you looking for to build the perfect server.
Just add components and quantities you would like to incorporate into the system
