Supermicro UP Storage SuperServer 522B-ACR12H

Designed for applications in general purpose computing, database processing and storage, and appliance optimized storage building blocks, the Supermicro UP Storage SuperServer 522B-ACR12H supports 12x direct attached hot-swap 3.5-inch hybrid storage bays for SAS, SATA, and NVMe. There is also a storage cage for 2x rear-mounted 2.5-inch SAS, SATA, or NVMe storage devices. For processing power, the system has a single Intel Xeon 6700 or 6500 series processor and 8x DIMM slots for up to 2TB of memory.
Configure

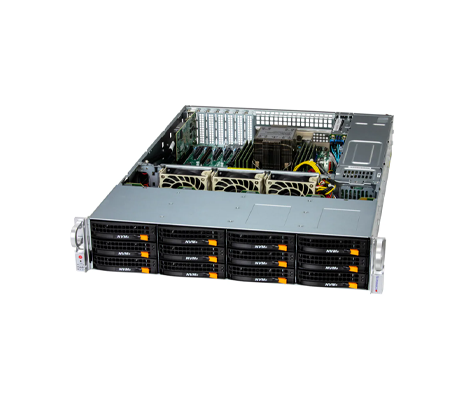

Supermicro UP Storage SuperServer 522B-ACR12H side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro UP Storage SuperServer 522B-ACR12H - System Overview

Supermicro UP Storage SuperServer 522B-ACR12H front view

CPUs compatible with the Supermicro UP Storage SuperServer 522B-ACR12H have a thermal design power rating of up to 350W. Processors with P-cores can provide up to 86 physical cores and 172 virtual threads. Those with E-cores can deliver up to 144 physical cores and 144 virtual threads. With 8-channel memory architecture and 8x DDR5 Registered DIMM slots, each memory module can reside in a dedicated memory channel. Memory speeds of up to 6400MT/s are supported.

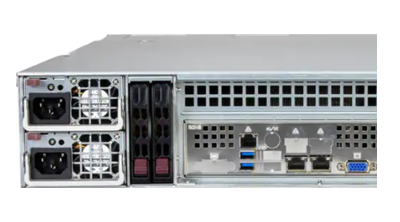

Supermicro UP Storage SuperServer 522B-ACR12H rear view

SAS support is via a dedicated SAS Broadcom 3916 controller offering RAIDs of 0, 1, 5, 10, 50, and 60. Onboard NVMe support is via an Intel VROC key and offers RAID of 0 or 1. SATA is also supported natively with 4x SlimSAS ports. The system also includes 2x PCIe 5.0 x2 NVMe slots for NVMe M.2 drives that can be used to boot the system or for superfast storage. For basic network communications, there are 2x 10GbE RJ45 ports on the back of the system, along with a dedicated Baseboard Management Controller (BMC) LAN port. For additional network communications or storage controllers there are 3x PCIe 5.0 x16 low-profile slots and 3x PCIe 5.0 x8 low-profile slots. The system is powered by dual, redundant 1200W Titanium level hot plug PSUs.

To manage the system Supermicro offers the SuperCloud Composer, Supermicro Server Manager, Super Diagnostics Offline, Supermicro Thin-Agent Service and the SuperServer Automation Assistant.

Available Configurations

Explore available configurations for the Supermicro UP Storage SuperServer 522B-ACR12H. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro UP Storage SuperServer 522B-ACR12H - Specifications

Processor - 1 Socket

  • 1x Intel Xeon 6700/6500 series processors with P-cores
  • 1x Intel Xeon 6500 series processors with E-cores
  • P-cores: Up to 86 cores and 172 threads
  • E-cores: Up to 144 cores and 144 threads
  • Supports up to 350W TDP CPUs (Air Cooled)

Memory

    Maximum Memory:

  • 1DPC: Up to 2TB 6400MT/s ECC DDR5 RDIMM

    • Memory Slots:

  • 8 x DIMM slots

Drive Bays

    SAS hardware RAID

    Default: Total 14 bays

  • 12x front hot-swap 3.5" NVMe*/SAS/SATA drive bays
  • 2x rear hot-swap 2.5" NVMe*/SAS/SATA drive bays
    • *NVMe support may require additional storage controller and/or cables

    M.2

  • 2x M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))

On-board Devices

    SATA:

  • 4x SlimSAS

    • SAS:

  • SAS (12Gbps) via Broadcom 3916; RAID 0/1/5/6/10/50/60 support

    • NVMe:

  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • 2x RJ45 10GbE with Intel X550

Input/Output

    LAN:

  • 2x RJ45 10 GbE LAN ports (Intel X550)
  • 1x RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)

    • USB:

  • 2x USB 3.2 Gen1 ports(Header)
  • 2x USB 3.2 Gen1 ports(Rear)

    • Video:

  • 1x VGA Port (rear)

    • Serial:

  • 1x COM port(header)

    • TPM:

  • 1x TPM header

System BIOS

    BIOS Type:

  • AMI 64MB UEFI

    • BIOS Features:

  • ACPI 6.5
  • SMBIOS 3.6 or later
  • UEFI 2.8

Management

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro SuperDoctor 5 (SD5)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

Expansion Slots

    Default:

  • 3x PCIe 5.0 x16 (in x16) LP slots
  • 3x PCIe 5.0 x8 (in x8) LP slots

Power Supply

  • 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Chassis

    Form Factor

  • 2U

    • Dimensions (D x W x H)

  • 25.6" (650 mm) x 17.2" (437 mm) x 3.5" (89 mm)

    • Weight

  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)

Supermicro UP Storage SuperServer 522B-ACR12H - Documentation

Supermicro UP Storage SuperServer 522B-ACR12H Data Sheet
