Supermicro UP SuperServer 111C-NR

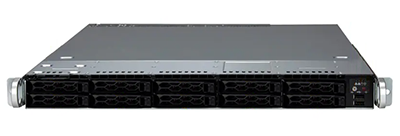

The front of the system houses 10x 2.5-inch NVMe/SATA/SAS drive bays. Featuring a single LGA-4677 socket, the Supermicro UP SuperServer 111C-NR supports 4th and 5th Generation Intel Xeon Scalable processors. There are 16x DDR5 DIMM slots on this system, which can house up to 4TB of memory. To expand the capabilities of the Supermicro UP 111C-NR server, there are 2x PCIe 5.0 x16 full-height, half-length slots on the rear of the 1U system.
Configure

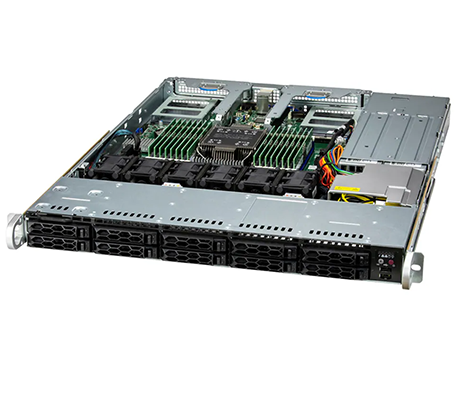

Supermicro 111C-NR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro UP SuperServer 111C-NR - System Overview

Supermicro SuperServer 111C-NR front detail Supermicro SuperServer 111C-NR detail top

Additional Features

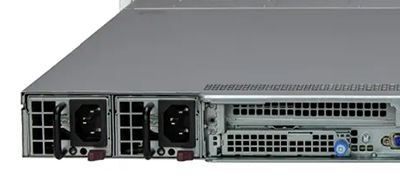

This platform is designed for Virtualization, CDN, Edge Node applications, High-Performance Computing, Cloud Computing, Storage Headnode, and Data Center Optimized tasks. 2x PCIe 3.0 x2 slots on the system board can be outfitted with NVMe M.2 drives and used to support the OS (M-key, 2280, 22110). The Supermicro 111C-NR is powered by dual 800W or 860W Platinum Level power supplies in a redundant configuration.

NOTE: This is only sold as a completely assembled system with a minimum of 1x CPU, 2X DIMMs, 1x storage device HDD, HDS (not including M.2), and 1x expansion slot/AIOM (Advanced I/O Module) NIC.

Supermicro UP SuperServer 111C-NR - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)​

    • Socket:

  • 1 x LGA-4677

Motherboard

  • Super X13SEDW-F

Memory

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Drive Bays:

  • 10x 2.5" NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid)

    • M.2 NVMe:

  • 2 x PCIe 3.0 x 2
  • M-key, 2280, 22110

Expansion Slots

  • 2 x PCIe 5.0 x16 FHHL slots

On-Board

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe:

  • NVMe

    • Chipset:

  • Intel C741

    • Network Connectivity:

  • Via AIOM & AOC

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    SATA:

  • 12 x SATA (6Gbps) ports

    • LAN:

  • 1 x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2 x USB 2.0 ports (2 front)
  • 2 x USB 3.2 Gen 1 ports (2 rear)

    • Video:

  • 1 x VGA ports

    • Serial Port

    1 x COM Ports (1 rear)

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 23.5" (597mm)

    Net Weight: 25 lbs (11.34 kg)

Supermicro UP SuperServer 111C-NR - Documentation

Supermicro UP SuperServer 111C-NR Data Sheet Supermicro UP SuperServer 111C-NR User's Manual Supermicro UP SuperServer 111C-NR Quick Reference Guide
