Supermicro UP SuperServer 111E-WR

The Supermicro UP SuperServer 111E-WR is compatible with a single 4th or 5th Generation Intel Xeon Scalable Processor. There are 8x DDR5 DIMM slots on the system board, and at maximum memory capacity can support up to 2TB. On the front of the system there are 10x 2.5-inch /SATA/SAS/NVMe Gen 5 hot-swap drive bays. 2x PCIe 5.0 x16 full-height, full-length slots and a single PCIe 5.0 x8 low-profile slot found on the rear of the chassis offer options to expand the capabilities of the Supermicro 111E-WR.
Configure

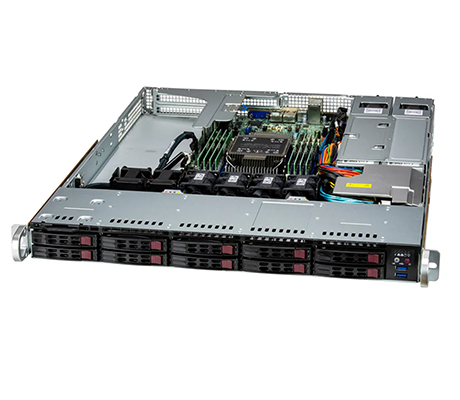

Supermicro 111E-WR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro UP SuperServer 111E-WR - System Overview

Supermicro SuperServer 111E-WR front detail Supermicro SuperServer 111E-WR detail top

Additional Features

Designed for Virtualization, Data Center Optimized applications, Cloud Computing, Database/Storage tasks, the Supermicro UP 111E-WR is a rack-mountable entry level GPU server. All 10x front storage bays can be outfitted with NVMe Gen5 drives with the addition of a virtual RAID on CPU (VROC) key. It is powered by dual 800W/860W power supplies in a redundant configuration.

NOTE: This system is only sold as a complete system with at least 1 CPU, 1 DIMMs, and 1 storage device (HDD/SSD/NVMe excluding M.2 drives).

Supermicro UP SuperServer 111E-WR - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 52C/104T; Up to 300MB Cache per CPU
  • Supports up to 300W TDP CPUs (Air Cooled)

    • Socket:

  • 1 x LGA-4677

Motherboard

  • Super X13SEW-F

Memory

    Memory Slots:

  • 8 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 2TB: 8x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 10x 2.5" NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid)

    • M.2:

  • 1 x PCIe 3.0 x2
  • Form Factor: 2280/22110

Expansion Slots

  • 2 x PCIe 5.0 x16 FHFL slots
  • 1 PCIe 5.0 x8 (in x16) LP slot
  • Can hold 2x FHFL GPUs or 1x FHFL double-slot GPU

On-Board Devices

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe:

  • NVMe

    • Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 2x 1GbE BaseT with Intel i210

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    SATA:

  • 10 x SATA (6Gbps) ports

    • LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 1GbE LAN ports

    • USB:

  • 4 x USB 3.2 Gen 1 ports (2 front; 2 rear)
  • 3 USB 2.0 ports (2 rear; 1 Type A)

    • Video:

  • 1 x VGA ports

    • Serial Port:

  • 2 COM Ports (1 header; 1 rear)

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 23.5" (597mm)

Supermicro UP SuperServer 111E-WR - Documentation

Supermicro UP SuperServer 111E-WR Data Sheet Supermicro UP SuperServer 111E-WR User's Manual Supermicro UP SuperServer 111E-WR Quick Reference Guide
