Supermicro UP SuperServer 511E-WR

Featuring a single 4th or 5th Generation Intel Xeon Scalable CPU, the Supermicro UP SuperServer 511E-WR is a 1U entry GPU server. The single CPU socket supports 8x DDR5 DIMM slots, which when fully configured holds up to 2TB of memory. The front of the system houses 4x 3.5-inch SATA/SAS drive bays. Expanding the capabilities of the Supermicro 511E-WR are 2x PCIe5.0 x16 full-height, full-length slots and a single PCIe 5.0 x8 low-profile slot on the rear.
Configure

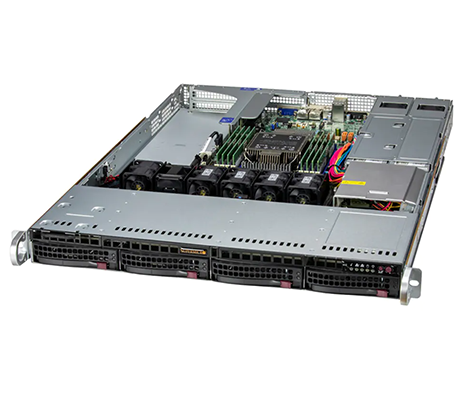

Supermicro 511E-WR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro UP SuperServer 511E-WR - System Overview

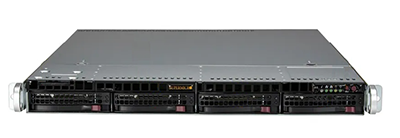

Supermicro SuperServer 511E-WR front detail Supermicro SuperServer 511E-WR detail top

Additional Features

This platform is designed for Virtualization, Cloud Computing, Data Center Optimized applications, Value IaaS, and as an Entry GPU server. Support of SAS drive formats requires the addition of a SAS controller card on the Supermicro UP 511E-WR server. A x2 PCIE 3.0 slot on the system board can be used to support an NVMe M.2 drive. This system is powered by dual 800W/860W Titanium Level power supplies in a redundant configuration.

NOTE: This system is only sold as a complete system with at least 1 CPU, 1 DIMMs, and 1 storage device (HDD/SSD/NVMe not including an M.2).

Supermicro UP SuperServer 511E-WR - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 52C/104T; Up to 300MB Cache per CPU
  • Supports up to 300W TDP CPUs (Air Cooled)

    • Socket:

  • 1 x LGA-4677

Motherboard

  • Super X13SEW-F

Memory

    Memory Slots:

  • 8 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 2TB: 8x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 4 x 3.5" SATA/SAS drive bays

    • M.2:

  • 1 x PCIe 3.0 x2
  • Form Factor: 2280/22110

    • Peripheral Bays:

  • 2 x 2.5" drive bays

Expansion Slots

  • 2 x PCIe 5.0 x16 FHFL slots
  • 1 PCIe 5.0 x8 (in x16) LP slot
  • Can hold 2x FHFL GPUs or 1x FHFL double-slot GPU

On-Board Devices

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe:

  • NVMe

    • Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 2x 1GbE BaseT with Intel i210

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    SATA:

  • 10 x SATA (6Gbps) ports

    • LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 1GbE LAN ports

    • USB:

  • 4 x USB 3.2 Gen 1 ports (2 front; 2 rear)
  • 3 USB 2.0 ports (2 rear; 1 Type A)

    • Video:

  • 1 x VGA ports

    • Serial Port:

  • 2 COM Ports (1 header; 1 rear)

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 25.6" (650mm)

Supermicro UP SuperServer 511E-WR - Documentation

Supermicro UP SuperServer 511E-WR Data Sheet Supermicro UP SuperServer 511E-WR User's Manual
