Supermicro UP SuperServer 521E-WR

The Supermicro UP SuperServer 521E-WR is a 2U entry GPU server with a single 4th or 5th Generation Intel Xeon Scalable Processor. The system houses 8x DDR5 DIMM slots, and when fully configured supports a maximum of up to 2TB of memory. Available on the front of the system, there are 8x 3.5-inch NVMe/SATA/SAS drive bays. Expanding the capabilities of the Supermicro 521E-WR, are 2x PCIe 5.0 x16 full-height, full-length slots and 2 x PCIe 5.0 x8 low-profile slots on the rear.
Configure

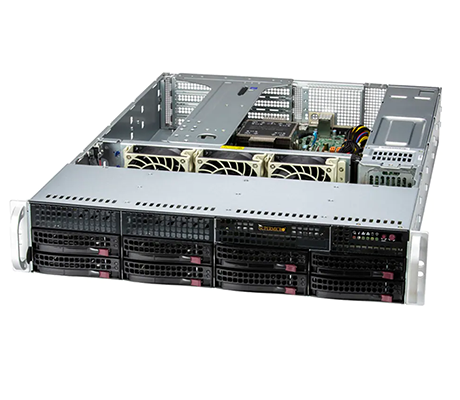

Supermicro 521E-WR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro UP SuperServer 521E-WR - System Overview

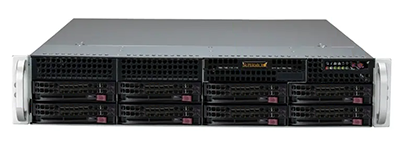

Supermicro SuperServer 521E-WR front detail Supermicro SuperServer 521E-WR detail top

Additional Features

Featuring a single 4th or 5th Generation Intel Xeon Scalable Processor, the Supermicro UP 521E-WR is designed for Data Center Optimized applications, Database/Storage needs, Network Appliance tasks, and use as an entry level GPU server. In addition to an optional drive cage in back with 2x hot swap SATAIII bays, there is a single PCIe 3.0 x2 slot on the system board that can be used to support an M.2 drive. It is powered by dual 920W Titanium Level power supplies in a redundant configuration and 2x embedded GbE ports in back provide basic network communications.

NOTE: This system is only sold as a complete system with at least 1 CPUs, 1 DIMM, and 1 storage device (HDD/SSD/NVMe not including an M.2).

Supermicro UP SuperServer 521E-WR - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 52C/104T; Up to 300MB Cache per CPU
  • Supports up to 300W TDP CPUs (Air Cooled)

    • Socket:

  • 1 x LGA-4677

Motherboard

  • Super X13SEW-F

Memory

    Memory Slots:

  • 8 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 2TB: 8x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Hot-Swap:

  • 8 x 3.5" NVMe/SATA/SAS drive bays (4 x 3.5" NVMe hybrid)

    • M.2:

  • 1 x PCIe 3.0 x2
  • Form Factor: 2280/22110

    • Peripheral Bays:

  • 2 x 2.5" drive bays

Expansion Slots

  • 2 x PCIe 5.0 x16 FHFL slots
  • 2 x PCIe 5.0 x8 LP slots
  • Can hold 2x FHFL GPUs or 1x FHFL double-slot GPU

On-Board Devices

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe:

  • NVMe

    • Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 2 x 1GbE BaseT with Intel i210

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    SATA:

  • 10 x SATA (6Gbps) ports

    • LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 1GbE LAN ports

    • USB:

  • 4 x USB 3.2 Gen 1 ports (2 headers; 2 rear)
  • 3 x USB 2.0 ports (2 rear; 1 Type A)

    • Video:

  • 1 x VGA ports

    • Serial Port:

  • 2 x COM Ports (1 header; 1 rear)

Chassis

    Enclosure:

    Height: 3.5" (89mm)

    Width: 17.2" (437mm)

    Depth: 25.5" (647mm)

Supermicro UP SuperServer 521E-WR - Documentation

Supermicro UP SuperServer 521E-WR Data Sheet Supermicro UP SuperServer 521E-WR User's Manual
