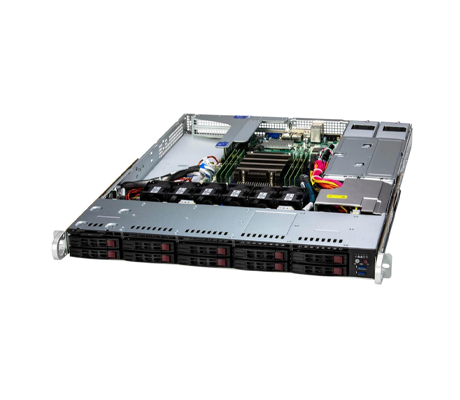

Supermicro WIO SuperServer 1115SV-WTNRT - System Overview

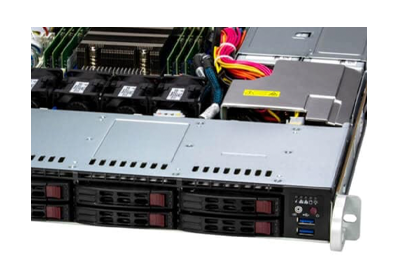

The front of the Supermicro 1115SV-WTNRT offers 10x 2.5” hot-swap drive bays for SATA, NVMe, or SAS configurations. NVMe and SAS support may require an additional storage controller or cables. In addition, the Supermicro SuperServer 1115SV-WTNRT carries 2x PCIe 3.0 x4 M.2 drives for 22110 or 2280 cards in the event more storage is needed or to boot the operating system.
For graphics support, the 1115SV-WTNRT delivers support for up to 1x double-width or 2x single-width GPUs in a PCIe 5.0 x16 FHFL slot for NVIDIA PCIe T400 or NVIDIA PCIe RTX 4000 Ada Generation GPUs. A 1x PCIe 5.0 x16 LP slot remains. To power the machine there are 2x 860W redundant (1 + 1) Titanium level (96%) power supplies, which can be accessed through the rear of the chassis.
Administrators can deploy a suite of Supermicro tools to manage the system such as SuperDoctor 5, Supermicro Update Manager, and SuperServer Automation Assistant. SuperDoctor 5 is supported by both Windows and Linux platforms in command-line or web-based interfaces. This allows for real-time access to critical system metrics such as CPU temperature, power usage, fan speed, and more. It can be used at-chassis or remotely. Supermicro can also send notifications via email and SNMP, enabling proactive detection and resolution of potential issues.
